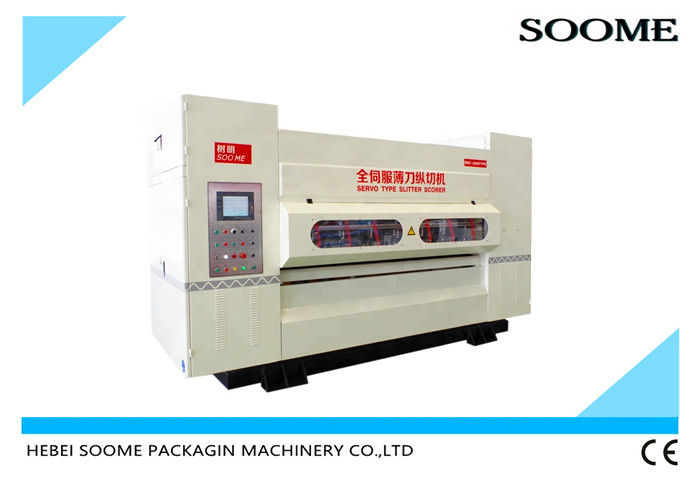

NC Slitter Scorer Pressure Line For Cutting Corrugated Paperboard Machine

Place of Origin Hebei Province China
Brand Name SOOME
Certification CE Certification
Model Number SMBD-ANC1800
Minimum Order Quantity 1set
Price negotiation
Packaging Details NC Slitter Scorer Pressure Line For Cutting Corrugated Paperboard Machine packing by wooden case with plastic film
Delivery Time 24after depoist
Payment Terms L/C, T/T, Western Union
Supply Ability 100per/mounth
Product Details
Voltage 220V/380V/440V Application Machinery & Hardware,Medical,Commodity,Food,Chemical
Condition New Packaging Type Cartons,Case,Film
Design Speed 150/200/250m/min Usage Making Carton
Warranty 1 Year Power 16/20/21kw
After-sales Service Provided Engineers Available To Service Machinery Overseas,Online Support,Free Spare Parts,Video Technical Support,Field Installation Blade Model 260*158*1.3mm
High Light

cardboard manufacturing machine

,

corrugated box manufacturing machine

Leave a Message
Product Description

NC Slitter Pressure Line Use For Cutting Corrugated Paperboard Machine

Features:



1. Indivdual step motor and controller on each slitter and scorer sets,quick and accurate order change.

2. Slitter and scorer are inverter controlled,speed synchronizes with board speed.

3. Change order fast, 3-8 seconds for changing order, the two machines can be achieved with no slow down immediately for a single.
4. Automatic tracking production line speed to ensure its synchronization with on-line production management system, and compatibility.
5. By the high-quality imports of industrial computers and high-performance programmable controller configuration, lower computer control system.
6. Three kinds of pressure line forms: convex on concave (three lines), convex on the concave (five lines), convex on the flat, all three pressure lines can form an electric conversion. Creasing wheel depth by computer control, linear, easy to bend.
7. Using a thin tungsten steel alloy blade, blade sharp, long life of more than 8 million meters.
8. Brothers of computer control, automatic or manual knife sharpener, you can trim the edge of the Brothers, improve production efficiency.
9. Imported synchronous drive unit, semi-precision, long life, low noise operation.

Advantage:

1. Memory of 999 order, non-stop changeover or manual change over can be realized.

2. automatic synchronize with the corrugated line and can also get in line with manufacture management system.High compatibility.

3. High quality imported industry computer and PLC equipped composing the ANC system.

4. computer controlled auto grinding and manual grinding also applicable.Alternative grinding the blade when slitting the board, it can increase efficiency.



Technical index:



Model 1800 2200 2500
Min.slitting width 135mm
Min creasing width 0mm
Changing order time 1-3s
Design speed 150m/min 200m/min

250m/min




Details:



Components Name Brand
Frequency Motor HeBei
Bearing Haerbin
Main Electrical Schneider
Approach Switch OMRON
Electromagnetic Valve Tai Wan
Left and Right Motor Sha
