NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade

NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade

  • NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade
  • NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade
NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade
Product Details:
Place of Origin: HeBei Province China
Brand Name: SOOME
Certification: CE certification
Model Number: SMBD-CNC-2750/3250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wrapped with film
Delivery Time: 24 after depoist
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100per/mounth
Contact Now
Detailed Product Description
Changingorder: Servo Type 1~3s Blade: Tungsten Steel
Voltage: 220V/380V Application: Machinery & Hardware,Medical,Commodity
Condition: New Dimension(l*w*h): 1570*3450*1500mm
Warranty: 1 Year Power: 10/12kw
Design Speed: 120/180m/min Driven Type: Electric And Pneumatic
High Light:

cardboard manufacturing machine

,

corrugated box manufacturing machine

NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade

Human machine interface —PLC control,The system for robot operating system more humanized, simple structure, easy to maintain.

1. Manual/auto feeder is available

2. Pre pressing roller,slitting blade and scorer holder are auto adjusted

3. Grinding knife is auto/manual

4. Cardboard thickness and press power are auto adjusted(customer required)



Features and characteristics:



1. Used thin blade slitting paperboard to avoid burr and be flattened. Finished cardboard is flat and smooth and free from burrs and press flatten, good straightness, improve quality and appearance of cardboard.

2. Automatic sharpening blades, cutting and grinding at the same time. Keep the sharpness of blade and increase working efficiency.

3. Scorer with the martin technique of French, no tear for high, medium, and low-grade cardboard.

4. Adjustable speed motor drive.

5. This machine slitter firstly, then prepress, and malefemale finally. It could be do slitting without scoring,avoid error when scorer.

6. The pre pressing moulding can decrease the damage of paperboard, suitable to the creasing of lowgrade quality paperboard



Technical Parameter:



Model No. SMBD-CNC-2750/3250
Slitter and scorer 4/6 5/8 6/10
Min. Slitting Width 200mm
Thin round knife outside diameter 200mm
Thin round knife thickness 1mm
Motor power 10/12Kw
Max. Speed 180m/min
Air pressure <0.4mpa
Dimensions L*W*H 1570*3450*1500mm

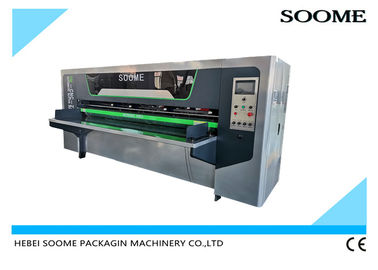

NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade 0

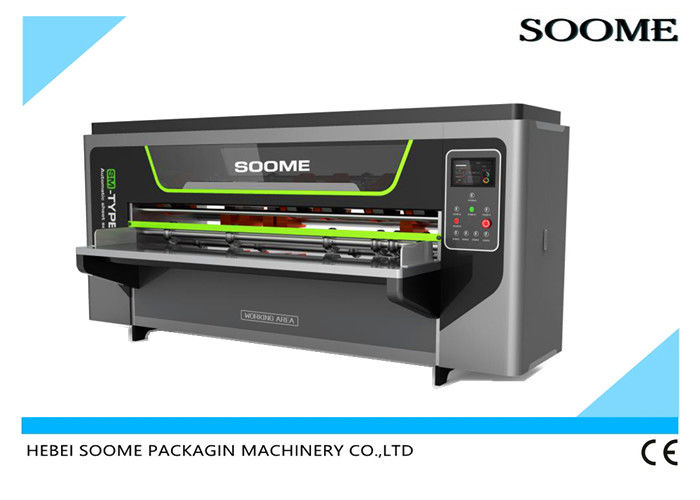

NC Slitter Scorer Cutting Automatic Corrugation Machine With Tungsten Steel Blade 1
