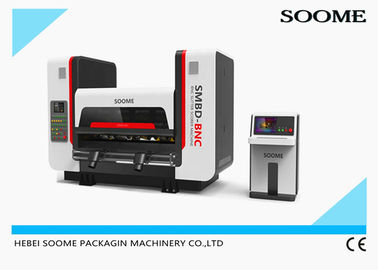

Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing

Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing

  • Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing
  • Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing
Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing
Product Details:
Place of Origin: Hebei Province China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-BNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case with plastic film
Delivery Time: 25 after depoist
Payment Terms: Western Union, MoneyGram
Supply Ability: 50 per mounth
Contact Now
Detailed Product Description
Design Speed: 150/200/250m/min Voltage: 220V/380V/420
Application: Machinery & Hardware,Food,Chemical Driven Type: Electric
Warranty: 1 Year Changing Order Time: 1-3s
Automatic Grade: Semi-Automatic Machine Type: Corrugated Paperboard Making Machine
Power: 20/24/25KW Changing Order: 1~3s
High Light:

cardboard manufacturing machine

,

corrugated box manufacturing machine

Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing

Function and Features :



1.The Uper And Lower Computer System Consist Of High-Quality Industrial Computers And High-Performance Programmable Controllers.
2. Adopt High Precision Linear Guide Way, Grinding Ball Screw Driving, Can Assure The Slitting And Scorer Precision Within ±0.5mm.
3. Has The Memory Of 999 Orders, Realize Non-Stop Automatic Or Manual Order Changing, Time Within 3~8s.

4.Change Order Quickly,When Two Machines Are Use Together, It Can Be Realized To Change Order Without Stopping.
5. The Machine Has Compact Structure, Small Vibration And Service Life.
6. The Thin Knife Blade Sharpening Is Controlled By Computer, Mechanical Or Manual Sharpening, Edge Trimming Knife, Easy To Tending
7. There Are Three Types Of Scorers: Convex To Concave (3layers Cardboard), Convex To Concave (5layers Cardboard), Convex To Flat, The 3types Can Exchange Electrically Fast.
8. Two Scheduling Modes (Fast Scheduling And Zero Scheduling).



Pneumatic Parts:



1. Air cylineder: Tian ao China

2. Magnetic valve: Tian ao China

3. Joint: Tian ao China



Technical Indext:



Model 1800 2200 2500
Efficient width 1850mm 2250mm 2550mm
depth of ceasing 12mm
Min. creasing width 0mm
Blade model Φ260*158*1.3mm
Creasing roller model 上(up)φ238mm下(down)φ130mm

Changing order time

(servo type)

1-3s

Design speed

150/200/250m/min
Correction range ±100mm
Precision ±0.5mm
Power (pre-creasing) 20kw 24kw 25kw
Power(normal type) 16kw 20kw 21kw

Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing 0

Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing 1

















































































Low Noise Computerized Thin Blade Slitter Scorer Corrugated Paper Slitting Creasing 2
