| Place of Origin: | Hebei Province China |
| Brand Name: | SOOME |
| Certification: | CE Certification |
| Model Number: | SMBD-ZDSL-2000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | wooden case with plastic film |
| Delivery Time: | 24 days depoist |
| Payment Terms: | Western Union, T/T, L/C, MoneyGram |
| Supply Ability: | 50 per mounth |

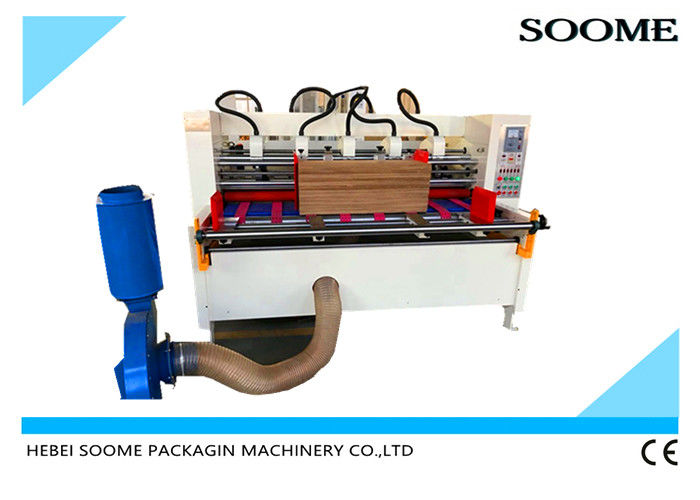

| Type: | Auto Feeder Slitter Scorer With Stacker | Voltage: | 380V/400V/415V Or Others |
|---|---|---|---|
| Application: | Machinery & Hardware,Commodity | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Field Installation |
| Packaging Material: | Plastic,Wood | Power: | 9kw/11kw/13kw |
| Usage: | Making Carton,slotting And Die-cutting Machine,Packaging | Design Speed: | 120-180m/min |
| Warranty: | 1 Year | Dimension(l*w*h): | 2630*770*1350 |
| High Light: | cardboard manufacturing machine,corrugated box manufacturing machine |
||
Function and Features:
1. Can set the qty. of paperboard, automatic stop the feeding after finishing,
2. Auto suction paper feeding, assured the safety of workers and decreased the working load.
3. Suitable to a large scale paperboard machining.
4. Three types of blade adjusted methods by manual / electric /automatic for optional .
5. part: adopt high quality tungsten steel blade, sharp and long work life, slice more tidy, non-pressing and non-burr.
6. dopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard to 260mm for small paper.
Main detail
1. the baffle size for screw adjustment,easy to operate. Can set the qty.Of paperboard,automactic stop the feeder after over the work.
2. Automatic feeding paperboard,promote the safe operation area.
3. Slitter unit: this parts adoption high quality tungsten steel thin kinfe blade,sharp and long work life, cut the paperboard neatly.slitting with funtion of automatic or manual grindstone to keep bladee sharp and sheet smoothly and tidy
4. Scoring unit:adopt 5 points scoring,scoring distance in-phase adjust,blazonry and easy to bend the carton sheet.pneumatic lifting of line roller, convenient to use.
5. Counting stacking,stacking neatly.can set qty,batch discharge.
Technical index:
| Model | SMBD-ZDSL-1800 | SMBD-ZDSL-2000 | SMBD-ZDSL-2500 | SMBD-ZDSL-2700 | SMBD-ZDSL-3000 |
| Effective width | 1600mm | 1800mm | 2300mm | 2500mm | 2800mm |
| Speed | 130m/min | 130m/min | 130m/min | 130m/min | 130m/min |
| Total power | 3kw | 4kw | 5kw | 5kw | 7.5kw |
| Min. Slitter width | 120mm | 120mm | 120mm | 120mm | 120mm |
| Min. Score-spacing | 30mm | 30mm | 30mm | 30mm | 30mm |
| Min. Paper length | 260mm | 260mm | 260mm | 260mm | 260mm |
| Dimensions L x W x H(mm) | 2440*1740*1360 | 2640*1740*1360 | 3140*1740*1360 | 3340*1740*1360 | 3640*1740*1360 |
