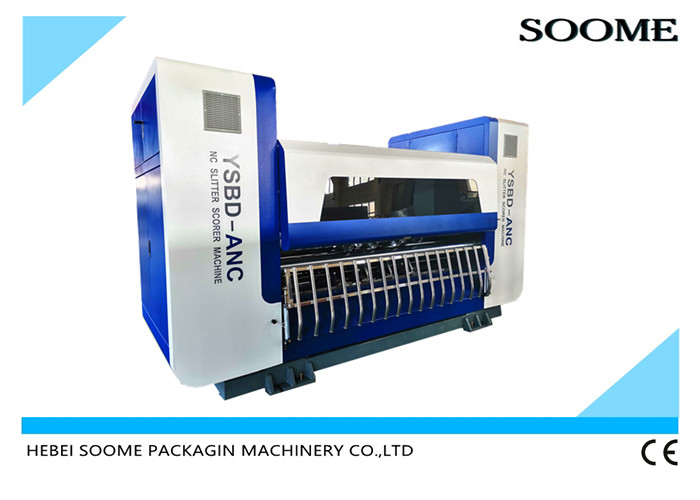

Automatic Carton Making Machine Corrugated Box Slitter Scorer Machine

Place of Origin Hebei Province China
Brand Name SOOME
Certification CE certification
Model Number 1800/2200/2500
Minimum Order Quantity 1 set
Price negotiated
Packaging Details wooden case with palstic film
Delivery Time 25days after depoist
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 50 per mounth
Product Details
Voltage 220V/380V,Customer's Demand Keywords Thin Blade Slitter Scorer Machine
Color As Per Customer Need,Customer's Request Packaging Type Cartons,Film,Case,Belt
Application Machinery & Hardware,Commodity,Food,Textiles Warranty 1 Year,1 Year And Long Life Technical Support
Function Slitter The Corrugated Cardboards Speed 150/200/250m/min
Condition New Weight 3000-5000kg
High Light

corrugated slitter machine


slitter scorer machine

Leave a Message
Product Description

Automatic Carton Making Machine Corrugated Box Slitter Scorer Machine

Important fertures:


1. The upper and lower computer system consists of high-quality industrial computers and high-performance programmable controllers. 2. High precision linear guide is used to grind ball screw transmission pair to ensure the positioning accuracy of theslitting line.

3. Can set the qty. of paperboard,automatic stop the feeding after finishing.

4. Auto suction feeding,assured the safety of workers and decreased the working load.

5. Suitable to a large scale paperboard maching.

6. Adopt high quality tungsten steel blade,sharp and long work-life,slice more tidy,non-pressing and non-burr.


Function and Features :


1. High productivity industry computer and high performance PLC make up the CNC system.

2. Adopt high precision linear guide way, grinding ball screw driving, can assure the slitting and creasing precision within ±0.5mm.

3. Has the memory of 999 orders, realize non-stop automatic or manual order changing, time within 3~8s. When two sets slitters using together, can change order faster.

4. Alloyed tungsten steel thin-blades,sharp and long life of over 8 million meters ,auto sharpening.

5. Design speed 200m/min. Can track the line speed automatically and keep the same speed with line. Easy to connect with management system.

6. Suitable to the corrugated cardboard slitting and scoring in the production line.

7. Can slittng the paperboard into needed width and crease lines use for folding.

8. Fully automatic controlled by computer, non-stop order changing, improve the production efficiency.


Technical index:


Model 1800 2200 2500
Efficient width 1850mm 2250mm 2550
Min. slitting width 135mm
Min. creasing width 0mm
Blade model Φ260*158*1.3mm
Creasing roller model 上(up)φ238mm下(down)φ130mm
Changing order time (servo type)


Changing order time (frequency converter type) 3-8s
