Automatic Corrugated Thin Blade Slitter Scorer Machine With Pneumatic Control

Basic Information
Place of Origin: Made in China
Brand Name: SOOME
Certification: CE
Model Number: YSBD-ANC
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or wooden case
Delivery Time: One month after deposit
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 100 sets/month
Detail Information
Type: Paper Cutting And Slitting Automatic Grade: Automatic
Application: Machinery & Hardware Driven Type: Electric And Pneumatic
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Video Technical Support, Field Installation Condition
Voltage: 220V/380V/440V Packaging Material: Wood, Film
High Light:

corrugated slitter machine

,

slitter scorer machine


Product Description

Automatic Corrugated Thin Blade Slitter Scorer Machine With Pneumatic Control



Summarize



This kind of thin blade slitter scorer machine was controlling the operation of the machine by computer and the cylinder at the same time, computer-control can adjust the thin blades and scorers right around the left, the thin blades were controlled up and down by pneumatic adjustment of the cylinder.



Features



1. Individual step motor and controller on each slitter and scorer sets, quick and accurate order change.

2. Slitters and scorers are inverter controlled, speed synchronizes with board speed.

3. Electric score-depth adjust.

4. Alloyed steel thin-blades, sharp and long life of over million meters, auto sharpening.

5. Standard motorized body left-right rectification system.

6. Individual sealed electrical cabinet, dust-free,constant temperature and humidity ensure longer life.



Function and Characteristic



1. The convex flattening adopts dymatic optical axis, full-plate printing without drag marks.

2. The blade and scorer of this machine is driven by servo, and can be adjusted independently to reduce errors.

3. Single screw structure, less zero return origin, simple maintenance, small errors.<

4. Two scheduling modes: fast scheduling and zero scheduling.

5. The machine has compact structure, small vibration and long service life.



Technical Index



Model 2200 1800 2500
Efficiency Width 2250mm 1850mm 2550mm
Min. Slitting Width 135mm 135mm 135mm
Min. Creasing Width 0mm 0mm 0mm
Blade model 260*158*1.3mm 260*158*1.3mm 260*158*1.3mm
Power 20kw 16kw 21kw
Depth of Creasing 12mm 12mm 12mm
Design Speed 200m/min 150m/min 250m/min

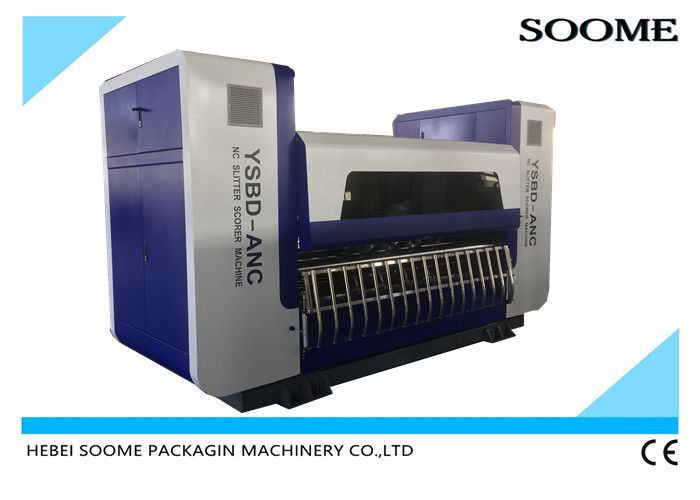

Automatic Corrugated Thin Blade Slitter Scorer Machine With Pneumatic Control 0

Automatic Corrugated Thin Blade Slitter Scorer Machine With Pneumatic Control 1
