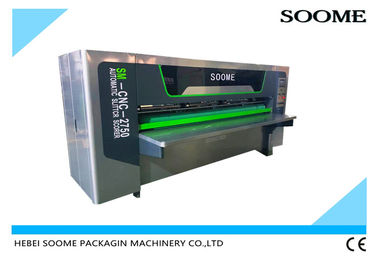

CE Automatic Carton Making Machine Thin Blade Corrugated Cardboard Slitter Scorer

Automatic carton thin blade corrugated cardboard slitter scorer machinery

Ⅰ. General introduction:

This machine apply to the corrugated cardboard slitting and scoring in the production line. The cardboard can be cut into the required width and the crease line can be pressed out at the same time .

The perfect slitting crease of the cardboard come out .

Ⅱ.Function and Features :

1. High productivity industry computer and high performance PLC constitute the NC system.

2. Adopt high precision linear guide way, grinding ball screw driving, can make sure the slitting and scoring precision within ±0.5mm.

3. There are more than memory of 999 orders, realize non-stop replacementor manual order replacement, thetime is between 3~8s. When two sets slitters machineryusing together, it can exchange orders morefaster.

5. Alloyed tungsten steel thin-blades knife,providing an incisive and long life of over 8 million meters automation slitter.

6. The blade sharpen is controlled by computer, automatic or manual sharpening, edge trimming knife, be more importantly, you have made the blade easy to maintain.

7. There are three types of pressure lines: convex to concave (3layers cardboard), convex to concave (5layers cardboard), convex to flat, the three types can exchange electrically more faster.

8. Front and rear pressure lines,realizes minimum scorer spacing is 0mm.

9 The whole machine is motorized moving left-right .

10. Ball bearing more , higher precision, higher speed.

11. Option: Two electrically adjusted waste suction mouth.

12. Design speed 200m/min. Canautomatically track the line speed and maintain production line speed, facilityto connect with management system.

13.The indentation depth can be adjusted electrically, perfect easy to bend

Ⅲ.Main function :

1. This machine has automatic sharpening system. Each blade has independent control of the sharpening switch. In order to extend the blade life effectively, you can according to the production quantity adjust the sharpening interval time.

2. Electromagnetic adjustable-speed motor. After the deceleration of a belt, chain drive to the host work. The operation is reliable and stable.

3. This machine blade adopt tungsten steel material. It has high quality and long life

4. The feeding part has pre-pressed wheel design. Creasing part is 3mm width design. That can ensure the paper board without crack and the poly-lines as a straight angle when the creasing.

5. The slitting blade has culet and rolling bearing design, and adjust very flexible and convenient.

Ⅳ.Mechanical parts:

1.Taiwan HIWIN linear guide way.

Order changing used HIWIN or Jining Botte precise ball screw.

Bearings:Germany FAG,China HRB famous brand.

Synchronous belt:Japan SUBAK.

Adopt raw material tungsten alloy thin blade

2. Linear guideway :Taiwan HIWIN .

Taiwan HIWIN precision ball screw.

Machine body adopted high precise and quality steel plate.

Bearings:Adopt Germany FAG and China HRB

Synchronous belt:Japan SUBAK

Ⅴ. Technical paramete:
