High Speed Automatic Feeder Corrugated Paper For Carton Making Machine

Basic Information
Place of Origin: Made in China Hebei
Brand Name: SOOME
Certification: CE
Model Number: SMSZ
Minimum Order Quantity: 1 Set
Price: Contact
Packaging Details: Wooden case or plastic film,1*20' container
Delivery Time: 40 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/month
Detail Information
Warranty: One Year Packaging Material: Plastic And Wood
Driven Type: Electric Key Selling Points: High Efficiency
Color: Depending On The Client Condition: New
Automatic Grade: Automatic Voltage: Customer's Demand
After-sales Service: 24 Hours Online Service Usage: Feeder Corrugated Sheet For Printing Machine
High Light:

corrugated carton making machine

,

cardboard manufacturing machine


Product Description

High Speed Automatic Feeder Corrugated Paper For Carton Making Machine



Mainly used for loading of leading edge equipment(such as printing machine, die cutting machine, etc.), which can cooperate with the speed of 100~350 sheets/min.

Characteristic:

Cost reduction, efficiency improvement, waste reduction: no one to operate, reduce the number of workers, effectively reduce the cost of enterprise employment, reduce the intensity of workers'labor. It can effectively improve the speed and work efficiency. Reducing the number of workers'contact with cardboard can reduce the damage of manual intervention to cardboard.

Stable performance: 2 sets of hydraulic system with mature specific effect are adopted, hydraulic cylinder is used to provide power for hectare inclination, rise and conveyor bed height, which has high output and stability and durability; hydraulic motor is used to provide power for conveyor belt conveyor, which occupies small space, has large torque and conveys uniformly.

Simple operation: button and touch screen man-machine graphical interface, PLC control, easy identification and easy operation, real-time display of working status.

Easy to use: Paper with the user's ground logistics use, convenient and efficient.

Working mode: It adopts translational automatic feeding mode, and can also be used for semi-automatic manual turning paper feeding.

Main technical parameters and performance

Max paper size:1200 X2800 mm

Cardboard stacker height :1800 mm

Max stacker weight:1500 Kg

Number of stacked columns: single column

Cardboard lift type:Hydraulic lifting fork turnover power: hydraulic drive

Lifting power of horizontal conveyor bed: hydraulic drive

Conveyor belt power: hydraulic motor (in order to ensure smooth transmission equipped with independent hydraulic pump station). Side baffle and front baffle, pneumatic pat alignment, side gear digital adjustment.

Whole machine movement: the machine itself can move forward and backward, when the printing press is split, the machine automatically moves backward. Keep the height of the cardboard in the work. The lifting fork automatically pushes the cardboard up and down with one key.

Conveyor belt conveyor cardboard can automatically start and stop according to the height of the printing press feeding bin

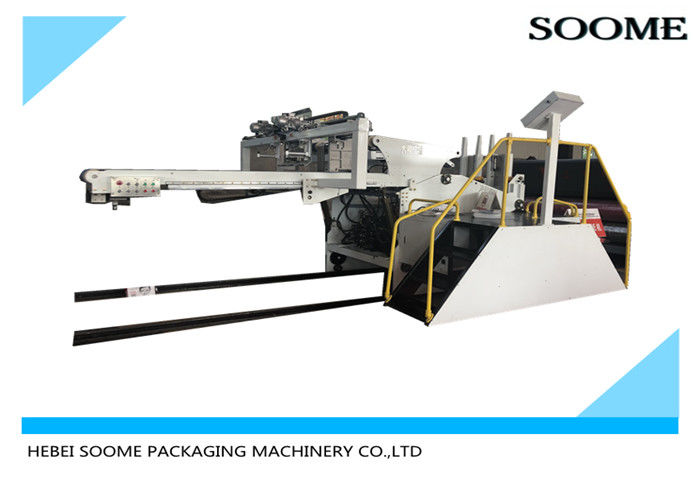

High Speed Automatic Feeder Corrugated Paper For Carton Making Machine 0

High Speed Automatic Feeder Corrugated Paper For Carton Making Machine 1

High Speed Automatic Feeder Corrugated Paper For Carton Making Machine 2
