High Speed Automatic Lead Edge Feeder Corrugated Cardboard Slitting Machinery

Place of Origin Made In China Hebei
Brand Name SOOME
Certification CE
Model Number SMKC
Minimum Order Quantity 1 Set
Price Contact
Packaging Details Wooden case or plastic film,1*20' container
Delivery Time 50 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 30 Sets per year
Product Details
Warranty 1 Year Packaging Material Plastic And Wood
Driven Type Electric Key Selling Points High Speed
Color Depending On The Client Condition New
Automatic Grade Automatic Voltage Customer's Demand
After-sales Service 24 Hours Online Service Usage Slitting Corrugated Box
High Light

cardboard manufacturing machine

,

corrugated box manufacturing machine

Leave a Message
Product Description

High Speed Automatic Lead Edge Feeder Corrugated Cardboard Slitting Machinery



1.Wall board material is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing, center distance of holes can reach ±0.01mm.
2.Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears.
3.All bearings use HRB brand.
4.Adopt electrical counter, can control the paper qty exactly.
5.Use good quality electrics of Chinese brand.

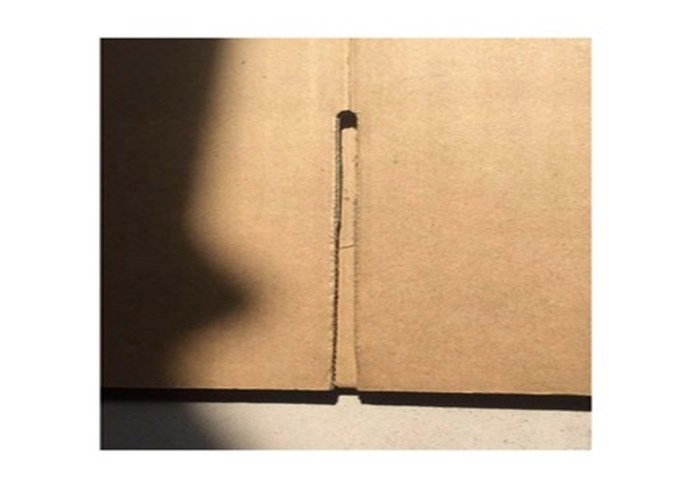

6.Adjust 4 slotting knives by electric together to change the slotting depth together, finish the carton height adjustment in one time together.
7.Electric transverse moving of 4 slotting knives separately. Knives and creasers left-right moving together.



Model Unit φ400 φ480 φ535 φ600 φ735
Max.Speed Pcs/min 60 60 60 60 60
Max Paper Feeding Size mm

2400

1200*2600

2800

2600

1450*2800

3000

2600

1600*2800

3000



2600

1800*2800

3000

2600

2280*2800

3000

Min Paper Feeding Size mm 350*600 400*600 420*600 420*600 500*700
Slotting width*depth mm 7*300 7*350 7*400 7*450 7*550
Phase Adjustment º Electric 360 Electric 360 Electric 360 Electric 360 Electric 36
