High Speed Die Cutting Creasing Machine , Electric Automatic Die Cutter

Place of Origin Made in China Hebei
Brand Name SOOME
Certification CE
Model Number SMMQ
Minimum Order Quantity 1 Set
Price Contact
Packaging Details Wooden case or plastic film,1*20' container.
Delivery Time 35 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 Sets/month
Product Details
Warranty One Year Packaging Material Plastic And Wood
Driven Type Electric Key Selling Points High Speed
Color Depending On The Client Condition New
Automatic Grade Automatic Voltage Customer's Demand
After-sales Service 24 Hours Online Service Usage Die Cutting And Creasing Carton Box
High Light

creasing die cutting machine


creasing and die cutting machine

Leave a Message
Product Description

High Speed Die Cutting Creasing Machine , Electric Automatic Die Cutter


Main mechanical properties:
The product can be a one-time cardboard, indentation, die-cutting process.Adopt Taiwan roller cutting edge positioning automatic paper feeding mechanism, adjustable air flow and host frequency conversion control.This machine the whole machine adopts PLC and color display on the machine multi-function control, convenient, quick and flexible.Phase adjustment by digital display electric, automatic zero, automatic reset;Drive gear adopt 40 CrMnTi high quality alloy steel, material carburizing and quenching, fine grinding processing;Main drive gear and the shaft adopts when tight free linkage method, make the phantom amplification, the center of the can celled wear and keep press overprint precision long life;Single machine combined with close, die-cutting don't walk;The machine has die cutting accuracy, appearance beautiful, use and maintenance is convenient, the characteristics of high degree of automation.


(1)Feeding paper unit

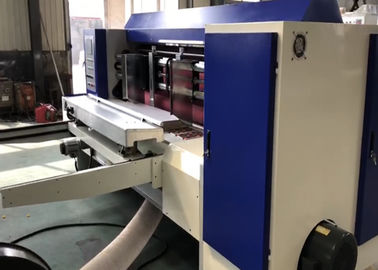

High Speed Die Cutting Creasing Machine , Electric Automatic Die Cutter 0

Item Details

1.Lead edge feeder system


1) suction paper, fan motor power is 7.5kw, can according to different board bending condition, air volume adjustment, ensure feeding smoothly.(valve adjusting air volume)

2) choose Taiwan roller cutting edge positioning automatic feeding mechanism.

3) side boards, electric block box position after adjustment.

4) Feeding counter, set, display production quantity, automatic alarm.

2.feeding paper roller

1) Outside of diameter for upper roller is Ø180mm, thick wall steel, wear-resisting rubber, correction and balance.

2) the paper roll diameter for 190 mm Ø, embossed hard chrome plating.

3) Paper roll gap dial manual adjustment, the range of 1.2 ~ 12 mm.

3.Automatic zero device

1) Feeding paper unit,die-cutting unit,auto zero by electrical type .

2) Cartons commonly use automatic zero devices, debugging die cutting a piece of cardboard can be adjusted to the right position, reducing waste of cardboard.


(2) Die-cutting unit

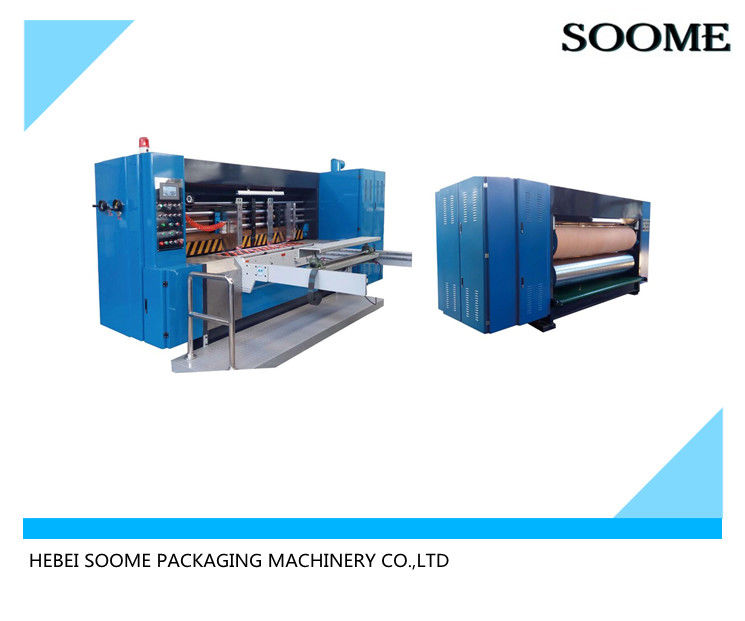

High Speed Die Cutting Creasing Machine , Electric Automatic Die Cutter 1

1.Die cutter roller (Down roller)

1) diameter of 432mm

2) 45 # steel material surface grinding, hard chromium plating.

3) balance correction, increase the running stability.

4) cutting die set screw hole spacing of transverse longitudinal divide 18 100 mm

5) apply to cutting die height 25.4 mm
Wooden template thickness: 16 mm (three layer board with 13 mm (five layer board)

2.Rubber gasket roller (upper roller)

1)outside diameter is 434.2 mm Ø
2) 45 # steel material surface grinding, hard chromium plating.
3) balance correction, increase the running stability.
4) manual adjustments and cutting die roll gap.

5)rubber gasket thickness of 10 mm diameter 456 mm), width is 250 mm.
6) optimal force glue adopt German Dipaito high quality products, is removable type, can be replaced rapidly new optimal force glue, restore the die-cutting precision.
7) detachable optimal force glue automatic grinding device, linear velocity of optimal force roller with automatic compensation function, after the optimal force glue grinding linear speed automatic compensation, to maintain the accuracy of each batch of cartons.

8)Mechanical horizontal 40 mm winding device.

3.Phase adjusting mechanism 1) planetary gear structure, the cylinder cushion rubber wheel paper.
2) die-cutting phase adopts planetary differential structure, the touch screen control and electric digital 360 ° adjusted.(running and stop all can adjust).


(3)Transmission gear


Item Details
1.Main drive gear 1) Material : 40 CrMnti alloy steel, carburizing and quenching treatment, grinding processing.
2)Six levels of precision smoothly (and auto transmission gear box) at the same level, low noise, hardness is HRC58-62, long life, basic don't wear out within 10 years, can achieve long-term printing alignment.
2.No Key link 1) Adopt when tight no key links, can make the complete seamless connection shaft with gear, when used in large torque is there will be no clearance, installation and maintenance more convenient, can make the long-term high driving accuracy and to ensure that the printing alignment.


Main technical parameters:


Item Unit 1200*2400 model
Max die-cutting size mm 1200*2400
Max feeding paper size mm 1200*2600
Min size(L×W) mm 400*600
Cardboard thickness mm 1~12
Max speed sheets/min 120
Economy speed sheets/min 100
Main motor power KW 13
Die-cutting precision mm ±0.5


The motor and electric appliance subsidiary


Name Origin Specifications
Main motor Guangzhou 15KwVFD MOTOR/1 Set
Bearing Harbin(main drive) Japan NSK All
Electrical appliances Schneider Siemens All
Clutch Xianyang All
Cylinder Zhejiang All
