High Precision Corrugated Machine Parts Wear Resistance Customized Size

Place of Origin Sichuan, China
Brand Name SOOME
Certification CE
Model Number 260x158x1.2MM
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details In bubble bag and cartons
Payment Terms T/T, L/C, Western Union
Supply Ability 20,000pcs per month
Product Details
Usage For Cardboard Slitting / Cutting Material Tungsten Steel Alloy
Holes Qty Have Holes And No Holes Both Types Sizes 260x158x1.2mm Or Customized
High Light

slitting machine parts


eastman cutting machine parts

Leave a Message
Product Description

High Precision Corrugated Machine Parts Wear Resistance Customized Size


I. General introduction


This product is in strict accordance with international standards ISO2296, People's Republic of China National Standard GB / T 14301-93 production. This kind of products is suitable for cutting laminated chipboard, MDF, Multi-board with the thickness of less than 35mm. Mainly used for ordinary steel, hardened steel, copper, aluminum and other metal materials and stainless steel, titanium, printed off and milling machining milling circuit boards and other difficult to machine materials. If for cutting laminated materials, need to together with scoring saw blade.


Compared with the high-speed hacksaw piece cutter, can achieve high-speed milling, processing efficiency. Milling precise size and finish, high product quality. Carbide hardness high red hardness, long wear life, so the overall carbide cutter blade is advanced tool currently in full play the advantages of its premise, considering its low production costs but so in recent years, using it to replace the high-speed sheet cutter hacksaw users is growing very fast.


II. Features of Blade


1. Triple tempt for optimum wear resistance.

2. Long service life for an extra clean cut of tissue paper, toilet roll.

3. Precise heat treatment.

4. Excellent cutting longevity and wear resistance.

5. High intensity,high toughness,small thermal deformation.

6. Blades are eliminated unwanted and uncontrollable residual stress.


III. Finish of side faces


1. With two-sided compound bevel consisting of secondary and primary bevel

2. Geometry of bevel optimized for the application.

3. Polished bevel for minimum friction.


IV. Techinical parameters


No. Outer diameter (mm) Inner diameter (mm) Thickness (mm)
1 190 105 1.2
2 200 122 1.2
3 260 158 1.2


V. Packaging and Shipment

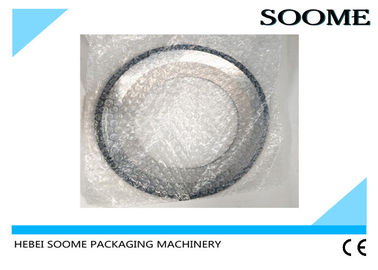

1. PE film or Kraft paper - keep air/water/humid away,thus rust-proofing

2. Bubble Wrap - increases the impact resistance ability

3. Rubber Slip or Corrugated Angle - gives special care to knife edges

4. Wood Screws crates - makes opening easier without damaging the crates

5. Corrugated boxes or Wooden crates - provide superior protection and stack-ability


High Precision Corrugated Machine Parts Wear Resistance Customized Size 0High Precision Corrugated Machine Parts Wear Resistance Customized Size 1
