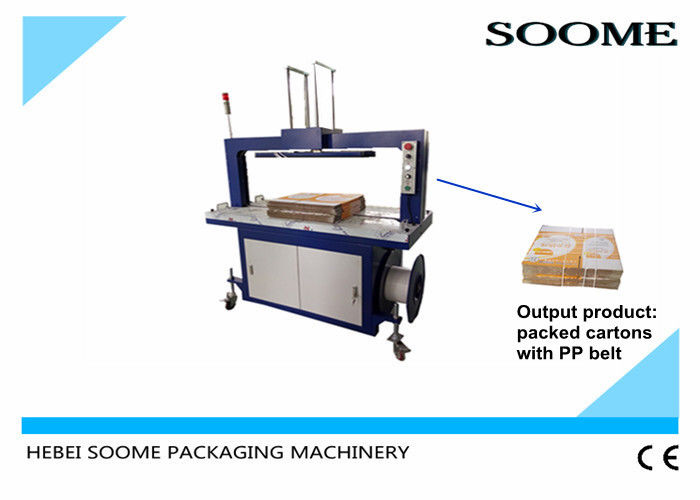

High Capacity Carton Strapping Machine , PP Belt Corrugated Boxe Baler
Place of Origin | Cangzhou, China |
---|---|
Brand Name | SOOME |
Certification | CE |
Model Number | SMDB-QZD-1100 |
Minimum Order Quantity | 1set |
Price | Negotiation |
Packaging Details | Wrapped with film or in wooden case |
Delivery Time | 25-30days after deposit |
Payment Terms | T/T, L/C, Western Union |
Supply Ability | 40sets per month |
Application | For Cartons Tying | Tying Method | Automatically |
---|---|---|---|
Belt Material | PP Belt | Belt Specs. | W 5-9mm, T 0.5-0.8mm |
Tying Speed | Max. 1.5s | Min. Tying Size | W80 X H60mm |
Machine Weight | 110kgs | Machine Size | 1260x660x1792mm |
Power | 600W, 10A | Voltage | 1P, 220V, 50HZ |
High Light | corrugated box strapping machine,polypropylene strapping machine |
High Capacity Carton Strapping Machine , PP Belt Corrugated Boxe Baler
I. General introduction
In the corrugated cartons making and transportation process, strapping / Packing cartons is the last procedure.
First use Corrugated Production Line to produce corrugated paperboard in different sizes, thickness, specifications and quality. Second use Thin Blade Slitter Scorer machine to slit into needed sizes and crease lines. Third put the sheets on Flexo Printer Slotter Rotary Die-cutter machine to print needed words, patterns and colors, and slot or die-cut into different shapes. Forth, put the printed cardboard on Folder Gluer machine to make into cartons. Fifth, after glued the cardboard into cartons, need strapping machine to pack them well waiting for transportation or selling.
As for the strapping machine, it has several name like baler, wrapping machine, packing machine, etc. And the packing machine one type use PP belt and another type use PE belt. This Automatic high speed strapping machine we introduced here is using PP belt.
II. Machine details
Machine size | L1360 x W660 x H1792MM |
Loading container size | L1500 x W800 x H1900MM |
Working table height | 850MM |
Weight capacity | 80KGS |
Machine weight | 120KGS |
Tying speed | ≦1.5s / belt |
Tying specs. | Min. Tying size: W80 x H60mm; Max. Size as per frame size |
Adhesive method | Hot melt |
Tying tightness | 0-45KG |
Power | 600W, 10A |
Voltage | 1P, 220V, 50HZ |
Standard packing frame | W650 x H500MM |
Optional | Can choose packing frame size, belt width |
III. Requirements of belt
Raw material | Polypropylene (PP) |
Specification | Belt W 5-9MM, Belt thickness 0.5-0.8MM |
Belt tray width | 170-190MM |
Belt tray inner core diameter | 200-210MM |
Belt tray outer diameter | 400-450MM |
Max. Tying strength | 45KGS |
IV. Installation conditions
Room temperature | -20°C-40°C |
Relative humidity | ≦90% |
Bottom plate | Max. Loading capacity 350KGS/㎡ |
Space | Min. 2000x1500MM |
Attention | Far away from fire, need dry and ventilate, non-corrosiveness |
V. Factory corner photo
VI. Loading container photo
