| Place of Origin: | China Hebei Dongguang |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMDB |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden or Plastic 20 container |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 set / month |
| Color: | Customer Requirements | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Warranty: | 1 Year | Airport: | Beijing,Tianjin,Jinan,Zhengding Airport |
| Automatic Grade: | Automatic | Strapping Belt Thickness: | 5mm,3mm,7mm,9mm |
| High Light: | polypropylene strapping machine,pneumatic steel strapping tool |
||

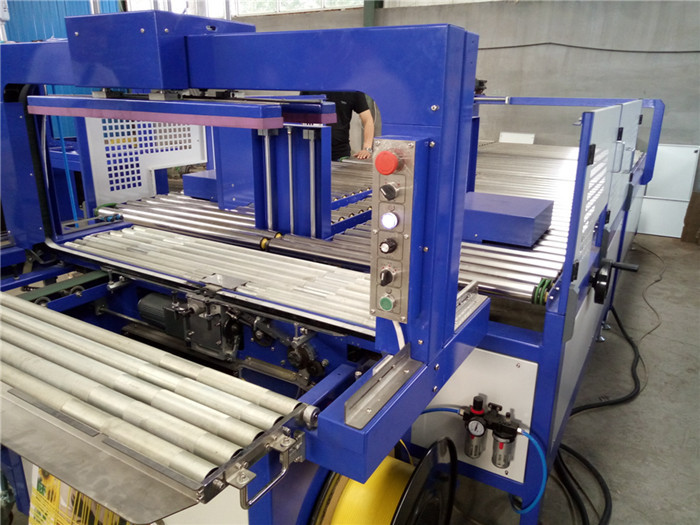

Safe Carton Strapping Machine Sensitive Touch Screen With 5mm Strapping Belt
When use the machine, users must understand the function of each switch to ensure correct, safe operation of the machine, so as to avoid the cost of the machine can not work.
1. Touch screen
Users can choose according to the strapping requirements of the operation.
2. Start button
After the machine starts, press the start button, the machine starts to work properly.
3. Reset button
The machine in an emergency stop, suddenly cut off or after the failure of the boot, press the reset button for 3 seconds to complete the whole machine reset.
4. Transport selection button
(1) when the knob is in the automatic gear, the machine automatically carries on the box.
(2) when the knob is in the position of the transmission, the machine is only the delivery table work, the product of the input only forward.
5. Emergency stop button
Press the emergency stop switch, the power indicator light is still on, the rest of the action to stop. No matter what kind of machine, if the machine immediately stop running, just press this switch can, if need to restart, in accordance with the direction of the arrow on the switch to a point, then press the reset button, so that the machine reset and then start work.
Technical parameters
|
Name |
Parameter |
|
|
Strapping line total power(incl. steering machine/ direction turn machine,gather align machine,strapping machine |
3KW | |
|
Source |
AC380V(1+10%)50Hz Three phase five line |
|
|
Steering machine |
L2210 W2050 H1350 | |
|
Gather align machine |
L1800 W2050 H1350 | |
|
Strapping machine |
L1500 W665 H1792 | |
|
Speed |
15pcs/min | |
|
Working environment |
Relative humidity≦90%,temperature 0-40℃, noise≦75dB(A) |
|
|
Belt width |
5mm | |
|
Belt index dial specification |
Paper core inner diameter 200mm-210mm,outer diameter 400-450mm,width 175-190mm |
|
|
Glue way |
Heat fusion |
|
|
Glue connect way |
Bottom glue, glue area ≧90%,glue location deviation≦2mm |
|
|
Tightness degree |
0-45KG | |
|
Air pressure |
0.5-0.8MPa | |
|
Roller material |
stainless steel |
|
|
roller |
diameter | 50mm |
| thickness | 1.5mm | |
|
Feeding speed |
0-50m/min | |
| PLC | Siemens | |
| Touch screen | Weilun Taiwan | |
|
Electric elements |
China/ Beijiafu Germany |
|
|
Driver |
Schneider |
|
| Bearing | HRB / NSK | |
|
Button |
Schneider CHINT |
|
| Sensor | Omron | |
| Motor | GPG | |
