| Place of Origin: | China Hebei Dongguang |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMCG |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden or plastic * 20”container |
| Delivery Time: | 45 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 set / month |
| Power: | 10KW | Machine Weight: | 3000KG |
|---|---|---|---|
| Overall Dimension: | L6800*W2000*H1850mm | Usage: | Partition Assembler |
| Warranty: | 1 Year | After-sales: | Engineer Available To Service Machinery |
| High Light: | cardboard manufacturing machine,corrugated box manufacturing machine |
||

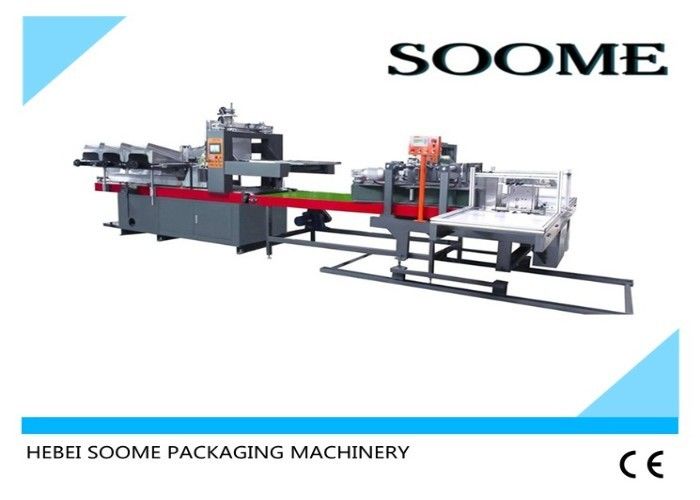

Multifunction Corrugated Paper Making Machine , Auto Carton Box Packaging Machine
Application And Characteristics :
This machine has beautiful appearance and compact structure. Adopting electric control switch, pneumatic locking, PLC control and man-machine interface. This machine is easy to operate, stable running and high production efficiency , used in beverage, wine, fruit, medicine and electronic products etc. clapboard assembler packaging . It is the ideal equipment of each carton industry.
Structure Features :
1. Suitable for the auto insertion of all kinds of carton clapboard.
2. Vertical direct using vacuum adsorption feeding , landscape orientation using servo feeding , quick and accurate .
3. Longitudinal and transverse to cross the two pieces of paper at the same time.
4. Longitudinal feeding shaft adopts electric lifting .
5. Landscape orientation feeding worktable lifting adopts electric adjustment .
6. Electric adjust the clapboard height in landscape orientation .
7. Output in double work positions, high efficiency and energy saving.
8. Touch screen input control, electric to adjust the clapboard parameters .
9. Comprehensive using of pneumatic and electric control, to ensure the advancement of machine control .
10. Using compressed air storage tanks for gas centralized supply, gas supply pressure stability,enough gas source.The gas devices get the gas from the primary tracheal , independent control, no influence between each other .
11. Equipped with fault detection device, auto stop the machine when paper blocking .
Advantages Introduction :
1. Instead of traditional manual operation mode, reduce the manpower cost, high efficiency and energy saving .
2. Touching screen configuration, easy operation .
3. All parts are made of high quality raw materials, after precision machining equipment, long service life .
4. Science advanced mechanical structure, adjust easily in short time, easy to use and maintenance .
5. Purchased components selects the high quality brand products at home and abroad, the quality is guaranteed .
Technological Parameter :
| Power supply | 380V / 50Hz | 3 phases - 4 lines |
| Power | 10 KW | Not including the air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3 * (1~N) | In double working station |
|
Longitudinal clapboard feeding track number |
6 | |
|
Horizontal clapboard feeding track number |
1-12 | |
| Clapboard size | Length L=120-450mm | Clapboard thickness 1.5-7mm |
| Height H=75-200mm | ||
|
Width W=120-450mm (double station) |
Width W=120-900mm (single station) |
|
| Lattice spacing C=40~150mm | ||
| Lattice spacing D=30~150mm | ||
| Working speed | 30~60 groups / min |
Working speed is connected with clapboard size and clapboard combining form . |
|
Machine weight
|
3000KG | |
|
Overall dimension
|
Length * Width * Height : 5500mm * 2200mm * 2000mm
|
|
|
Note : when the width of clapboard is greater than 450mm , the machine just can work in single station . Air compressor or air compression station requirement : 6kgf/cm2 .
For the special type of clapboard , we can customize the machine as client’s wish .
|
||
Configuration List :
| No. | Name | Quantity | Note |
| 1 | Auto partition assembler | 1 set |
Output : double station |
| 2 | Paper feeder | 1 set | Clapboard combinations : crisscross |
| 3 | Pneumatic system | 1 set | Air compressor : offered by customer |
| 4 | Electric system | 1 set |
PLC , human-computer interface , Servo control |
Machine list:
Button: SCHNEIDER
PLC: OMRON
Contactor: Taiwan SHILIN
Switching power supply: SCHNEIDER
Touch screen: Taiwan WEILUNTONG
Air pump: Taiwan YADEKE
Bearing: Germany MOKE and China WANXIANG
Motor: Cangzhou ZHONGYUAN
