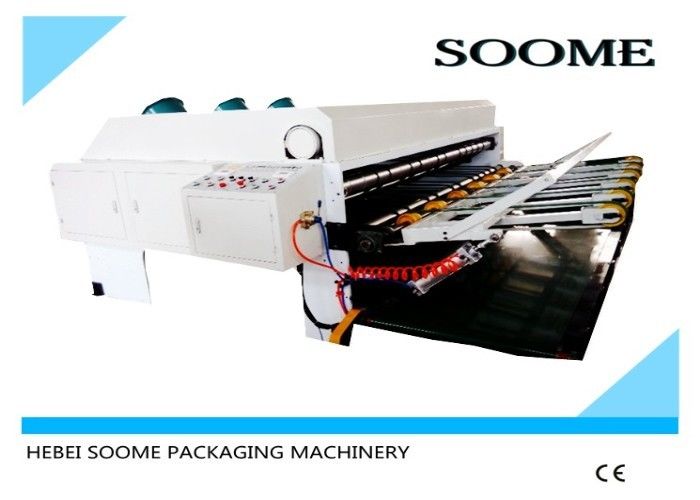

Stainless Steel Automatic Corrugation Machine Waste CleaningWith Vibrating Belt

Stainless Steel Automatic Corrugation Machine Waste CleaningWith Vibrating Belt

  • Stainless Steel Automatic Corrugation Machine Waste CleaningWith Vibrating Belt
  • Stainless Steel Automatic Corrugation Machine Waste CleaningWith Vibrating Belt
Stainless Steel Automatic Corrugation Machine Waste CleaningWith Vibrating Belt
Product Details:
Place of Origin: China Hebei Dongguang
Brand Name: SOOME
Certification: CE
Model Number: SMQF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden or plastic * 20”container or shipping LCL
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 15 set / month
Contact Now
Detailed Product Description
Collect Paper Table: Hydraulic Type Function: High Effieciency
Usage: Corrugated Waste Cleaning Material: Steel
Warranty: 1 Year After-sales: Engineer Available To Service Machinery
High Light:

corrugated carton making machine


corrugated box manufacturing machine

Stainless Steel Automatic Corrugation Machine Waste CleaningWith Vibrating Belt


Main Features


1. Integrated style structure: solid and stable. Install wheel axle. Freely adjust work position.

2. Combined application design for chip-removing brush and chip-removing blower can guarantee result of removing chip.

3. High elastic round belt has long service life and cannot damage paperboard.

4. Height of belt and chip-removing brush can be adjusted.

5. Trash conveying unit: frequency conversion speed regulation can freely adjust speed of trash cleaning.

6. Speed should be synchronous with printing die-cutting machine.

7. To conveyor the waste paper out of the machine by motor and belt. The vibration device can adjust frequency and vibrate the conveying belt to make waste scrap fall during conveying, air blowing after belt to blow off waste scrap.

8. Two stage conveying belt, first one by pneumatic up/down and has oscillator stripping, easy operate.


Vibrating part


1, Contral Operate:

(1) All the motors of the waste cleaning machine are separately controlled by the independent button, and can be operated independently according to the production requirements.

(2) With Sudden- Stop Protection Device to make sure the operating safety.

2, Front-end Paper Receiving Arm:

(1) Adopted pneumatic lifting structure, which can suit for die cutting height of

different printing machine and convenient for front-end print machine to

dismantle and mount the templates.

(2) Equipped with iron trim strip paper pressing mechanism and a medium-

pressure fan, which can make the paperboard smooth and smooth into the

waste main transmission bearing.

3, Vibrating Belt:

(1) Vibrating belt is imported cylindrical high elasticity belt, not easier to aging and hard to damage the paperboard under high-speed vibration.

(2) The belt shaft with a semicircular groove,can adjust the belt position flexibly

to adapt to the production needs of various irregularly shaped paperboard.

4, Bearing:

(1) The main transmission bearing by independent motor, consisted by four whole bearings with concave wheel surface, divided into the top and bottom of each two, and on the wheel surface every ten centimeters a groove, it easy to adjust the belt freely according to the actual size of the carton board, to ensure that the special-shaped carton passed smoothly and avoid causing the damage to the cardboard.

(2) The vibration bearing drive is controlled by an independent motor, and can

be controlled separately. The speed adjustment is convenient, and can ensure

the jitter stroke.

(3) The vibration bearing is operated with two bearings, and each axis has three chattering points, so as to speed up the jitter frequency and improve the jitter effect.

5, Vibrating Cleaner System :

(1) The front-end of the waste cleaner is equipped with medium-pressure fan to achieve the effect of waste cleaning and at the same time make the paperboard close to the conveyor belt for smooth delivery.

(2) The waste cleaning mechanism is composed of dual vibrating cleaning structures. Each one is driven by an independent motor, and can achieve better effect of waste paper removal through different vibrating frequencies.

(3) The rear-end of the waste cleaner is equipped with axial fan and brush device so that the vibrating waste paper can fall from the paperboard in order to achieve the best cleaning effect.

(4) The plane belt equipped on both sides at the bottom of the waste cleaner and the waste paper division board equipped at the rear end, convenient to match the waste paper output belt to completely output the waste paper, reducing waste paper cleaning.


Technical parameter:


Type Unit SMQF-1220 SMQF-1224 SMQF-1628
Max.Speed M/min 250 250 180
Max.Sheet Size mm 1200*2200 1200*2400 1600*2800
Min.Sheet Size mm 400*700 400*700 400*700
Covering Area(L*W*H) mm 3960*3440*1600 3960*3840*1600 3960*4040*1600
Weight  Kg  2160 2360 2660
Power Kw 8.8 8.8 8.8
Voltage of Product  V/Hz 380V/50Hz 380V/50Hz 380V/50Hz
Paper receiving Height mm Customized Customized Customized


Stainless Steel Automatic Corrugation Machine Waste CleaningWith Vibrating Belt 0
