I. Parameter

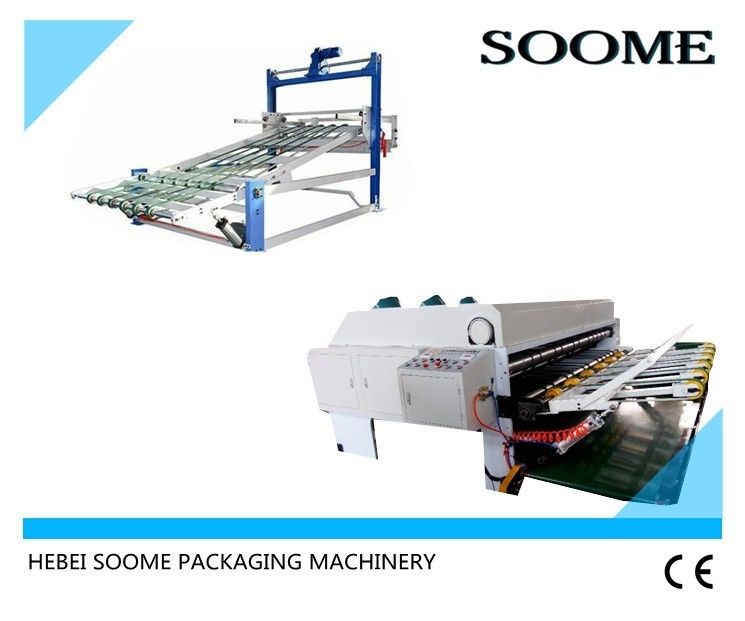

II. Stacker part:

1, Contral Operate:
(1) With computer touch screen;
(2) With sudden-stop protection device to make sure the operating safety;
2, Front-end Paper Receiving Arm:
(1) Adopted pneumatic lift structure,which is convenient for frond-end printing machine to dismantle and mount the templates;
(2) Equipped with iron trim strip paper pressing mechanism,which can make the paperboard entering and moved more smoothly in the process;
3, Conveyor Belt:
(1) Conveyor belt is imported foreign wrinkle belt,it is not east to aging,can ensure the smooth transportation of cardboard.
4, Max Stacking Height:
(1) Normal stacker max stacker height 1600-1700mm.
5, Counting System:
(1) The paperboard counting mechanism constructed by the back-end paper receiving part, PLC and photoelectric switch, can realize counting accurate,fast.
(2) In the state of the machine non-stop, can set the carton to automatically stack and count between 10-50 pieces any data, count accurate, easy to operate (patent design).
(3) Add one set powered roller frame,(W2000*L40000mm)can backward delivery cardboard;

III. Vibrating part

1, Contral Operate:
(1) All the motors of the waste cleaning machine are separately controlled by the independent button, and can be operated independently according to the production requirements.
(2) With Sudden- Stop Protection Device to make sure the operating safety.
2, Front-end Paper Receiving Arm:
(1) Adopted pneumatic lifting structure, which can suit for die cutting height of
different printing machine and convenient for front-end print machine to
dismantle and mount the templates.
(2) Equipped with iron trim strip paper pressing mechanism and a medium-
pressure fan, which can make the paperboard smooth and smooth into the
waste main transmission bearing.
3, Vibrating Belt:
(1) Vibrating belt is imported cylindrical high elasticity belt, not easier to aging and hard to damage the paperboard under high-speed vibration.
(2) The belt shaft with a semicircular groove,can adjust the belt position flexibly
to adapt to the production needs of various irregularly shaped paperboard.
4, Bearing:
(1) The main transmission bearing by independent motor, consisted by four whole bearings with concave wheel surface, divided into the top and bottom of each two, and on the wheel surface every ten centimeters a groove, it easy to adjust the belt freely according to the actual size of the carton board, to ensure that the special-shaped carton passed smoothly and avoid causing the damage to the cardboard.
(2) The vibration bearing drive is controlled by an independent motor, and can
be controlled separately. The speed adjustment is convenient, and can ensure
the jitter stroke.
(3) The vibration bearing is operated with two bearings, and each axis has three chattering points, so as to speed up the jitter frequency and improve the jitter effect.
