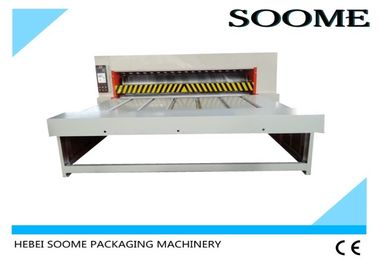

Roll To Roll Rotary Die Cutting And Creasing Machine For Feeding Corrugated Box

Roll To Roll Rotary Die Cutting And Creasing Machine For Feeding Corrugated Box

  Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line and die cutting indentation machine .

  Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.

  We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Iran,Turkey,Spain and so on.

  Wish we unite in a concerted effort for the beautiful future!

Machine function and characteristic

1. Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress;Adopt high precision machining centers, CNC grinding machine for grinding processing.

2. The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.

3. The engine drive gear is adopted 45# steel

4. Machine transmission parts (shaft, gear joint) are adopted free key connection (LOCK-ALX), the connection eliminate clearance. It is suitable for long-term high speed running with high torque.

5. The machine drive bearing ,important driving parts adopt three big domestic famous brand: HRB, simple maintenance,long service life.

6. The engine lubrication system is adopted automatic spray type lubrication.

1. Die cutting roller:

1) Centrifugal casting steel cylinder, the computer dynamic balancing correction, surface

grinding, hard chromium plating, and increase the running stability.

2) Die cutter fixed screw holes spacing of 100 * 100 mm

3) Apply to cutting die height 25.4 mm

4)  die cutting roller diameter :432mm (without the wooden die )

5) Die-cutting roller cylinder type auto separation unit, it can up and down by

pneumatic ,and delay time ,there is photoelectric,so when the paperboard through ,

then the die cutting roller will lift up , decrease wear of rubber.

2. Rubber roller :

1) Cast steel material, surface grinding, hard chromium plating

2) Balance correction, increase the running stability

3) Rubber thickness is 10mm , width is 230mm or 250mm

4) Rubber roller diameter is 434.2mm(without the rubber)

5) Imported Taiwan MaxDura BRAND RUBBER, convenient installation, the die cutting times

can up to 120 million times.

Then the die cutting roller will lift up , decrease wear of rubber.

3.  other details :

1). Six levels of fine grinding gear using 40 cr material, low noise, long service life.

2). Lubrication system, adopting the mechanical pump oil supply device, automatic spray the

circulating oil,lubricate evenly, improve the service life of gear.

3). Phase adjustment is by electric.
