Heavy Duty Corrugated Die Cutting And Creasing Machine Hand Operated

Place of Origin China Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMMQ-MH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or plastic * 20”container or LCL
Delivery Time Goods in stock
Payment Terms L/C, T/T, Western Union
Supply Ability 30 set/month
Product Details
Raw Material Cast Iron Computerized No
Condition New Color Blue,Green,Silver
Usage Die Cutter Paper Motor Chinese Top Brand
High Light

die cutting creasing machine


creasing die cutting machine

Leave a Message
Product Description

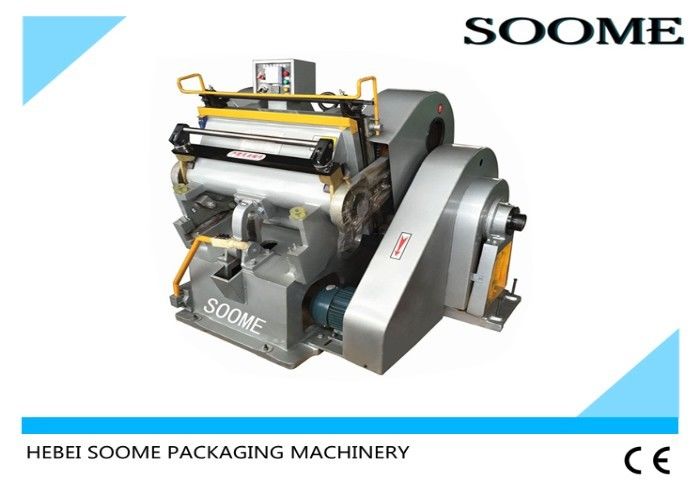

Heavy Duty Corrugated Die Cutting And Creasing Machine Hand Operated


Product Description:


Die cutting machine for carton box, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of material, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. Machine has been well accepted by the customers from domestic and oversea market due to its outstanding performance, reliable in quality, easy for operating and low cost in price.


Main Features


1. Adopt high quality foam type casting HT250 material, main parts use 700-2 material which has the high density, more thick and bigger cutting pressure. Each machine is about 400kg heavier than common type.

2. The whole machine adopts China famous brand HRB bearings, with heat treated,angle change position designing, to reach the high strength and better occlusion.

3. Sliding bearings are made of high quality alloy copper, abrasion resistant and shake reducing. Bearing shaft adopts ZCuZn40Pb2 material.

4. High cutting pressure, moving-bed can be opened to its optimum, angle bigger than 160°, so the operation is more easy and safe.

5. This machine brake is sensitive and has four safety insurance methods, keep the operator more safe.

6. Automatic oil supplying system.

7. All our machines use the painting specially for cars, more beautiful and durable.

8. Have 3 functions of pressing and cutting for single sheet, continuous sheets and opening dwell. The dwell time can be adjusted.

9. Flywheel with big moment of force and large pressure.

10. The single plate electromagnetic clutch is sensitive and reliable.

11. Be suitable to colorful corrugated cartons, kinds of plastic plates, leather, car inside decoration, cloth collar, and covered film products.


Main parts


Motor: Mengniu (National inspection exemption brand)

Electrics: Schneider

Bearings: HRB (Key parts use NSK)




Model Max. area Working speed Efficiency length Power Overall dimensions
PYQ401C 750x520mm 28±2(stroes/min) <15m 2.2kw 1260x1350x1280mm
PYQ203D 930x670mm 23±2(stroes/min) <25m 4.0kw 1800x1600x1600mm
ML1100 1100x800mm 20±2(stroes/min) <32m 5.5kw 1900x1800x1700mm
ML1200 1200x830mm 20±2(stroes/min) <35m 5.5kw 1900x2000x1700mm
ML1300 1300x920mm 18±2(stroes/min) <40m 7.5kw 2000x2400x1800mm
ML1400 1400x1000mm 18±2(stroes/min) <45m 7.5kw 2000x2450x1900mm
ML1500 1500x1050mm 18±2(stroes/min) <45m 7.5kw 2000x2500x1930mm
ML1600 1600x1250mm 16±2(stroes/min) <50m 11kw 2170x2560x2130mm
ML1800 1800x1300mm 16±2(stroes/min) <62m 15kw 2240x2800x2230mm
ML2000 2000x1400mm 16±2(stroes/min) <80m 15kw 2280x2900x2230mm




1. Q: Are you a factory or trading company?

    A: We are a manufacture which is specialized in the production of various kind of carton equipment.(with export license)

2. Q: Where is your factory located? How can I visit here?

    A: Our factory is located in Dongguang Country Cangzhou City Hebei Province China. We can pick you up if you need, welcome to visit our factory.

3. Q: How does your factory do regarding quality controlling?

    A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end .

a. All raw material we used are environmental-friendly

b. Skillful workers care every details in handling the producing and packing process

c. Quality control department specially responsible for quality in each process.

5. Q: How is the evaluation of the products?

    A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia,

EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.

6.  Q: What is the payment terms?

     A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
