High Accurately Die Cutting Creasing Machine With Front Conveyor Delivery Mechanism

Place of Origin China Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMMQ-BMY
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or plastic * 40”container
Delivery Time 25 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 30 set/month
Product Details
Features Two Times Position Function Automatic Grade Semi-Automatic
Type Die Cutting Machine Usage Flat And Die Cutting Cardboard Box
Dimension Machine Model Warranty 12 Months
High Light

creasing die cutting machine


creasing and die cutting machine

Leave a Message
Product Description

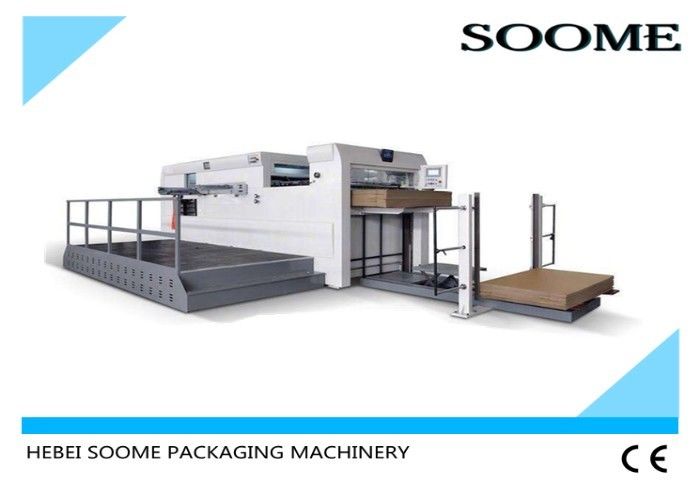

High Accurately Die Cutting Creasing Machine With Front Conveyor Delivery Mechanism


  Semi-automatic die cutting machine is equipped with front conveyor delivery mechanism.The two groups of pressing wheels and two times positing function will make the products more flat,and improve the accuracy and speed.

1. The machine’s development is combined with advantages of similar products in domestic and over seas,is special equipment for packaging products such as cartons and paper boxes.

2. Gripper bars with high intensity are applicable to all kinds of cardboard,paperboard and corrugated paper.

3. Frontal,back and side registration mechanism ensures great precision of die cutting.

4. Other parts are adopted such as intermittent mechanism with high precision,air clutch,pneumatic locking mechanism,programmable controller and man-machine interface.

5. The interface can display various digital information of machine such as working speed ,amount of paper processed,total running time,etc.

6. It is easy to eliminate troubles according to the display of trouble shooting.

7. Transducer is adopted to control the main motor in achieving step-less speed variation.


Front conveyor mechanism


1. Front conveyor mechanism, can be used for card paper, corrugated paper and grey board

2. All parts are imported

3. Fish scale type paper feeding, smooth and accurate

4. Micro-adjustment mechanism for paper feeding platform

5. With monitoring video device, can display the operation condition of paper collection part *Via secondary positioning, to ensure die cutting accuracy.


Conveying paper platform


1. Electromechanical dual- sheet detector *Adopt advanced control system to control the speed of feeding device, making paper feeding smoothly and reducing collision

2. Conveying paper platform can be controlled separately, and vacuum conveying paper platform is optional

3. Imported conveying paper belt

4. Super wear-resistant polyurethane conveying paper wheel

5. Adjustable rubber wheel and brush wheel, to ensure accurate positioning when they reached front gauge and side gauge.

6. Front gauge detection,to guarantee the arrival rate of paper

7. Adopt left/right dual-push pull gauge way to meet different printing and alignment requirements.


Die cutting part


1. Pressure-containing member adopts high-strength nodular cast iron -QT500 and special casting process, thus it has high strength and never deforms.

2. The Ni-Cr-Mo metal steel crank shaft Through the special craft processing,imported from Germany.

3. Super wear-resistant worm and gear imported from Taiwan *Knife template turnover device that is convenient and fast *Strong oil supply lubrication system

4. Imported intermittent box with torque limit & limit cutting protector, to ensure the machine is smooth and safe operation.

5. High-precision 240 degree intermittent mechanism *Pneumatic locking device, safe and fast *High-speed rotary joint

6. Automatically adjust the pressure ,when the maximum pressure reached 300t.

7. Die cutting plate frame, adopting central positioning system and being equipped with micro-adjustment device

8. 10.4 inch color screen, displaying the working state of machine all the time.

9.  Pressure be adjusted by PLC system , convenient and fast.


Paper collection part


1. Automatic paper aligning device

2. Paper collection part is equipped with control panel to realize more personalized operation*Paper collection photoelectric device, to ensure neat paper collection

3. Automatic lift control system of paper collection platform*Manual auxiliary paper collection system

4. The main chain protection device *Prevent the paper returning device


Max paper size 1100*790mm 1300*940mm 1500*1100mm 1650*1200mm 1900*1400mm
Min paper size 400*350mm 470*420mm 470*420mm 550*500mm 650*550mm
Max die cutting size 1070*770mm 1280*920mm 1480*1080mm 1620*1180mm 1870*1380mm
Max working speed 6000(s/h) 5000(s/h) 5000(s/h) 4000(s/h) 3500(s/h)
Rated power 11Kw 13.5Kw 13.5Kw 19.7Kw 22Kw
Max working pressure 300(t) 300(t) 300(t) 300(t) 300(t)
Machine weight 15t 17t 19t 21t 30t
Overall dimension(mm) 6200*4000*2300mm 6672*4400*2300m 7582*4600*2300mm 7987*4600*2500mm 8218*5300*2500mm
Scope of application E,B,C,A and AB flute corrugated paper (1-8.5mm thickness)
