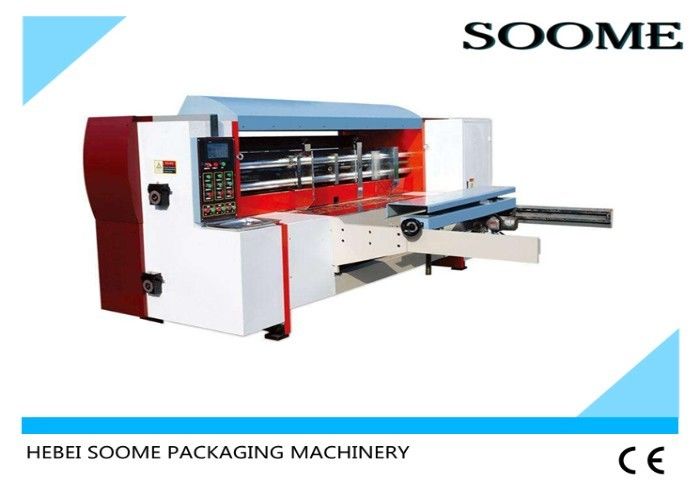

High Speed Die Cutting And Creasing Machine Lead Edge Feeding Paper 160Pcs/Min

Place of Origin China Hebei Dongguang
Brand Name SOOME
Certification CE
Model Number SMYY-QY
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Wooden or plastic * 20”container or LCL
Delivery Time 30days
Payment Terms L/C, Western Union, T/T
Supply Ability 25 set/month
Product Details
Feeding Paper Speed 10000Pcs/Hour Color Optional Color
Condition New Carton Box Die Cutting Machine
Rubber Cushion Germany Depair Brand Packaging Type Cartons Or Film
High Light

die cutting creasing machine


creasing die cutting machine

Leave a Message
Product Description

High Speed Die Cutting And Creasing Machine Lead Edge Feeding Paper 160Pcs/Min


Used and characteristics:


1. This machine control by photo electricity,air unite together,safe and high efficiency;Can once complete to groove,slice the corner,slice the side,press the line,punch hole etc.Particular suitable to produce the special carton.

2. Adopt vacuum adsorption paper feeding style,wind stress can be adjustment.

3. Transmission gear by high frequency thermal treatment,adopt auto sprinkle lubricating system,greatly increased the running precision and use life.

4. Use best quality steel,inner thermal refining,surface treated by rigidity chrome electroplated and grind,ensure the machine steady working.

5. Die cutting rubber cushion import from Taiwan Max Dure,install and exchange conveniently,die cutting knife edge smooth and long use life,up to 12 million times,greatly reduce the cost.

6. Die cutter roller can horizontal movement,distance is 40mm,pneumatic device control mould movement up and down,delay the rubber roller use life.

7. Adopt the speed difference device,automatic adjust the roller speed.Confirmed carton same size in different batch.

8. Optional front paper feeding system.


Die cutting department:


1. Die cutting roller for the high quality steel materials,30mm thickness,balance correction,hard-chrome plating.

2. Wallboard for high-quality cast iron material,50mm thickness,and large processing center production.

3. Soft-roll automatic grinding institutions to pouches repeat usage,grinding 3-4 times.

4. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line.

5. Polyurethane cut imports of soft pouches,ease of installation,the die-12000000.

6. Mechanical soft roll about 40 mm lateral movement,the pads wear uniform.

7. 40Cr material the use of grinding gears for 6,low noise,long life.

8. Die cutting roller cylinder automatic separation devices to reduce wear pouches.


Paper feeding department:


1. Adopt the world’s most advanced leading-edge feed system,feeding precision is high ,speed and long life round feed,feeding the achievement of 10000pcs/hour,accuracy ±0.5mm.

2. Feed 10000 per hour speed,precision die cutting from +0.75mm to -0.75mm.

3. Phase planetary gear used electric adjustment,turn on and turn down were quick adjustment.

4. Before manually adjust block cardboard,cardboard side block electric adjustment.

5. Paper roller have a plastic face,to prevent cardboard,to increase feed accuracy.


Computer unit:


1. Man-machine interface,PLC precision control of the entire computer system.

2. Main motor frequency control.

3. On the control panel before and after the concise,easy to operate.

4. The machine is by light,electricity,gas joint control system.

5. Electrical accessories of the machine are brand-name.


Technological Parameter:


Max feeding paper(mm) Min feeding paper(mm) Thickness of feeding paper Feeding speed Power of main motor Machine weight
1730*1200 350*500 11mm 30-120pcs/min 4.0KW 4500Kg
2050*1200 350*500 11mm 30-120pcs/min 5.5KW 5000Kg
2050*1350 400*600 11mm 50-160pcs/min 7.5KW 5500Kg
2480*1350 400*600 11mm 50-160pcs/min 7.5KW 6000Kg
2500*1600 500*600 11mm 30-100pcs/min 11.0KW 7000Kg
