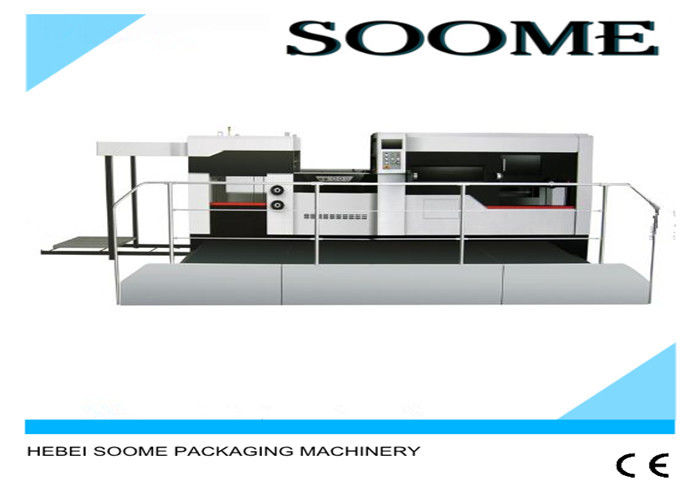

PLC Automatic Die Cutting And Creasing Machine With Schneider Component
Condition | New | Color | Customized |
---|---|---|---|
Voltage | 220V/380V/440V | Die Cutting Precision | ≤±0.10mm |
Computerized | Yes | Warranty | 1 Year |
High Light | die cutting creasing machine,creasing die cutting machine |
PLC Automatic Die Cutting And Creasing Machine With Schneider Component
Summarize
The flat and die cutting mechanism of the flat die cutting machine is flat, and the vertical flat die cutting machine is vertical when the plane of the pressboard and the pressboard is vertical. When the die cutting machine is working, the press plate presses through the press to the plate. The different trajectory of press plate can be divided into two types: one is that the press plate is swinging around the fixed hinge, so in the moment of the beginning of the die press, there is a certain angle between the plate working face and the template surface, which makes the die cut earlier cut into the lower part of the cardboard, which will easily cause the overpressure in the lower part of the mold plate and the upper part not completely cut through. In addition, the force of die cutting will cause lateral displacement of cardboard. When the die cutting machine is working, the press plate is driven by the connecting rod, and the cylindrical roller is used as the fulcrum, and it swings on the flat guide rail of the machine seat. When the working face of the press plate is transferred from the tilt to the parallel position of the press plate, the plate is pressed parallel to the die cutting plate in parallel way.
Product Description
1. It is the key equipment for die cutting, creasing and embossing of box, carton and label etc.
2. The machine adopts high precision indexing intermittent, pneumatic die lock mechanism, air clutch, over load protection mechanism, electric pressure adjust mechanism, ensuring smooth and high speed running. It also equipped with preloading mechanism, vice feeding mechanism, speed-variable paper conveying mechanism, auto lubrication system.
3. Main driving base lubrication oil chilling system etc. exerting the machine’s full potential.
4. All electric parts and driving parts are all from internationally famous brands, ensuing the stability of high speed running and high precision of die cutting. PLC and electronic code real-time monitor whole machine running, diagnosing malfunctions conveniently. Big size man-machine interface display machine running state, malfunction point and trouble-shooting ways.
Model | SMMQ-QMY-1080 | SMMQ-QMY-1200 |
Max. paper size | 1060mmx750mm | 1200mmx780mm |
Min. paper size | 400mmx350mm | 400mmx380mm |
Max. die cutting size | 1050mmx730mm | 1180mmx770mm |
Paper thickness |
paperboard:0.12-2.0mm corrugated paper:≤4mm |
paperboard:0.12-2.0mm corrugated paper:≤4mm |
paper feeding height | 1500mm | 1500mm |
Paper delivering height | 1220mm | 1220mm |
Die cutting precision | ≤±0.10mm | ≤±0.15mm |
Gripper size |
Min. Gripper:7mm Max. Gripper:12mm |
Min. Gripper:7mm Max. Gripper:12mm |
Max. speed | 7000S/H | 7000S/H |
Pressure | 300T | 300T |
Power | 13.5KW | 17KW |
Main motor power | 11KW | 11KW |
Dimension (length*width*height) | 7690mm*3800mm*2330mm | 7690mm*3900mm*2330mm |
Weight | 16T | 17T |
