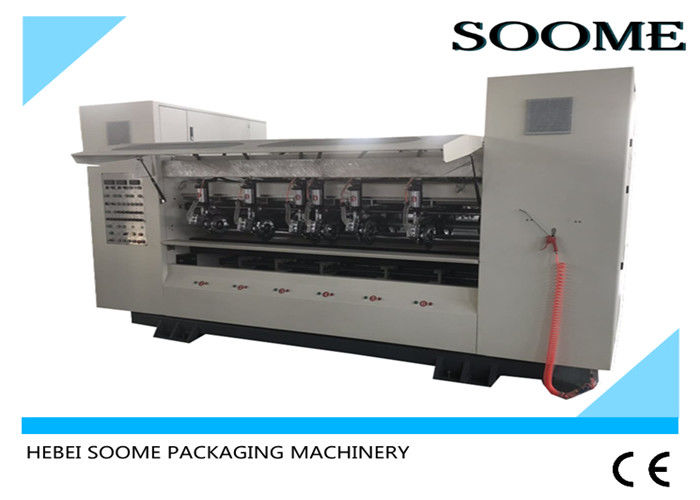

Corrugated Paper Slitter Scorer Making Machine Within 1 To 3 Seconds
| Place of Origin | Made In China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMBD-BNC-2200 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiation |
| Packaging Details | Wrapped With Flim |
| Delivery Time | 30 Days |
| Supply Ability | 30 Sets/Month |
Product Details
| Condition | New | Weight | 5T |
|---|---|---|---|
| Automatic Grade | Automatic | Color | Yellow |
| Warranty | 1Year | Voltage | 220V/380V |
| High Light | cardboard slitting machine,slitter scorer machine |
||
Product Description
Type 2200MM Speed 200M / Min Computerized Thin Blade Slitter Scorer Machine
For Corrugated Line
Summarize
As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise.Adopt computer-controlled,automatic change order,and reduce waste,improve work efficiency.
Characteristic
1. Slitter and scorer independent servo control ,realize fast change.
2. Change order within 1-5 seconds precise(±0.5mm)
3. Two rows of scorers,realizes minimum scorer spacing is 0mm.Three type of scorers,convex to concave (three lines),convex to concave(five lines),convex to flat.
4. Precised gapless synchronous transmission belt,precious encoder monitoring.
5. Trim suction-inlet.Application of two machine together can also realize fast change.
| Width | 1600mm | 1800mm | 2000mm | 2200mm |
| Speed | 200m/min | 200m/min | 200m/min | 200m/min |
| Min.Slitter-spacing | 135mm | 135mm | 135mm | 135mm |
| Min.Score-spacing | 0mm | 0mm | 0mm | 0mm |
| Body-rectification range | 200mm | 200mm | 200mm | 200mm |
| Total power | 16.25kw | 16.25kw | 20.25kw | 20.25kw |
| Dimensions L*W*H | 3480*1650*2340 | 3680*1650*2340 | 3880*1650*2340 | 4080*1650*2340 |
