Place of Origin: | Made in China |
Brand Name: | SOOME |
Certification: | CE |
Model Number: | SMBD-QDD |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Contact |
Packaging Details: | Wooden case or plastic film 1*20'' container |
Delivery Time: | 30 Days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20 Sets / month |
Driven Type: | Electric | Brand Name: | Soome Pack |
---|---|---|---|
Voltage: | 220/380/450 V | Usage: | Cutting And Creasing Paperboard |
Warranty: | 1 Year | Port: | Tianjin Xin Gang Port |
Highlight: | cardboard slitting machine,slitter scorer machine |

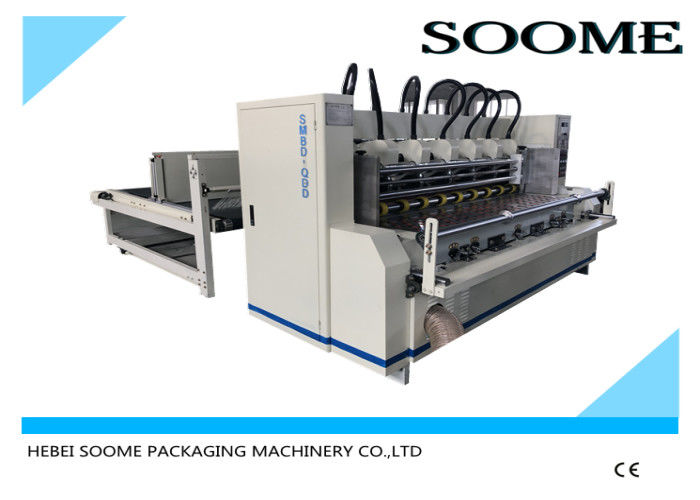

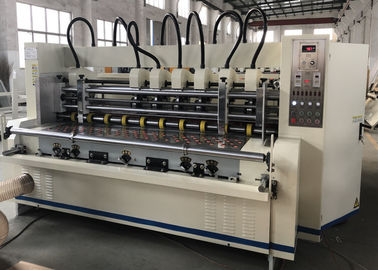

Automatic Dividing Thin Blade Slitter Scorer Machine 2500 Mm Tungsten Steel Blade
Soome machine,established in 1995. Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine.
Facing the fierce competition in corrugated packing field,our company adopt three concepts “mechatronics”“intelligent operation”and “simple usage”.We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy .Our products sold to Italy, Spain, Argentina, India, Pakistan, Germany, Egypt,Vietnam,Kazakhstan,Iran,Turkey ,Russian ,and so on.
Wish we unite in a concerted effort for the beautiful future!
Product overview:
The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades working width, automatic locking, improved the working efficiency.
Two types of this slitter for baffles:
1) Independent suction auto feeder part (suitable to big wide paper).
2) Combined auto feeder with main machine together (suitable to small and narrow paper)
Features:
1. Adjust the baffle size by lead screw, easy to operate.
2. Can set processing paper qty, automatic stop the feeding after finishing.
3. Automatic adsorption feeding, improve the operation security, reduce the labor intensity.
4. Suitable to the long paper slitting creasing.
5. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.

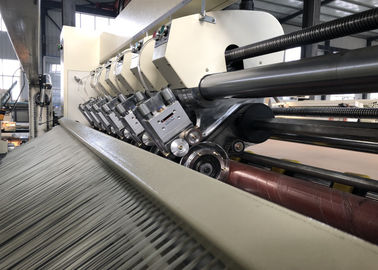

6. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

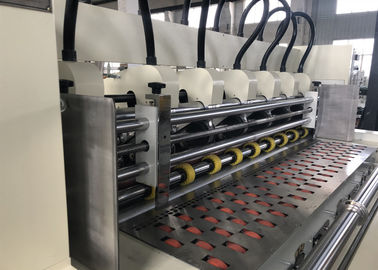

7. Adopt two rubber rollers in front and back of blades, make sure the paper will not run inclined.
8. Can choose automatic or manual sharpening of blade.

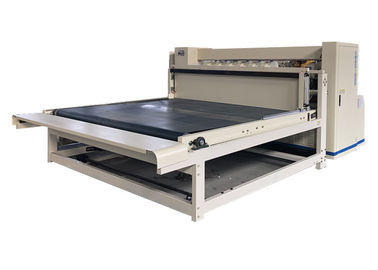

9. Stacker : electrical adjustment of the back guard size as per paper height; Automatic lifting up and down as per settled paper piling height.
10. Use high quality paper pressing strip, make sure to pile up tidy.
Technical parameters:
Model |
SMBD-ZDDD-2000 | SMBD-ZDDD-2200 | SMBD-ZDDD-2500 | SMBD-ZDDD-3000 |
Effective width |
1800mm | 2000mm | 2300mm | 2800mm |
Min. Slitting length |
270mm | 270mm | 270mm | 270mm |
Min. Slitting width |
130mm | 130mm | 130mm | 130mm |
Min. Indentation width |
30mm | 30mm | 30mm | 30mm |
Machine size |
2640*1750*1400 | 2840*1750*1400 | 3140*1750*1400 | 3640*1750*1400 |
Power |
7.5kw | 7.5kw | 10.5kw | 13.5kw |
Max. Piling height |
300mm | 300mm | 300mm | 300mm |
Main parts:
Item | Brand | Origin |
Synchronous belt | SUBAKE | Japan |
Thin blade |
Tungsten alloy, raw material |
Guangdong, China |
Bearing | HRB | China |
