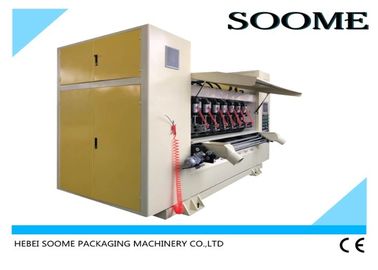

Auto Thin Blade Slitter Scorer Machine For Cutting Creasing Corrugated Paper

  • Auto Thin Blade Slitter Scorer Machine For Cutting Creasing Corrugated Paper
  • Auto Thin Blade Slitter Scorer Machine For Cutting Creasing Corrugated Paper
  • Auto Thin Blade Slitter Scorer Machine For Cutting Creasing Corrugated Paper
Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMBD-ANC
Minimum Order Quantity 1 Set
Price Contact
Packaging Details Wooden case or plastic film 1*20'' Container
Delivery Time 45 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 15 Set/month
Product Details
Effective Width 1700mm,1900mm,2100mm,2400mm Knife Configuration 5,6,7
Scorer Configuration 8,10,12 Min.slitter-spacing 160mm
Min.scorer-spacing 0mm Dimensions L*W*H(mm) Machine Model
Warranty 12 Months Port Tianjin,Xingang
High Light

corrugated slitter machine

,

cardboard slitting machine
Leave a Message
Product Description

Auto Thin Blade Slitter Scorer Machine For Cutting Creasing Corrugated Paper



  Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .

  Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.

  We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Iran,Turkey,Spain and so on.

  Wish we unite in a concerted effort for the beautiful future!



Function and features:



Suitable to the corrugated cardboard slitting and scoring in the production line. Fully automatic controlled by computer.



  • Individual motor and controller on each slitter and scorer sets,quick and accurate order change.
  • Slitters and scorers are frequency inverter controlled,speed synchronizes with line speed.
  • Two rows of scorers in front and back,realizes minimum scorer spacing is 0mm.
  • There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female.
  • Electric score-depth adjust.
  • Alloyed tungsten steel thin-blades,sharp and long life of over 8 million meters ,auto sharpening.
  • Standard motorized body left-right rectification controlling system.
  • Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life.
  • Standard touch screen monitor,easy to operate.
  • Standard communication interface HMI,easy to link with management system.
  • Color code tracker or absorption of waste are optional.
  • A memory of 999 orders.Non-stop orders changeover or manual change over can be realized.
  • High quality beeline rail and high-precision screw conveying guarantees a ±0.5mm precision

Technological parameter:



TYPE SMBD-ANC-1600 SMBD-ANC-1800 SMBD-ANC-2000 SMBD-ANC-2200 SMBD-ANC-2500 SMBD-ANC-2700
Effective width 1400 1600mm 1800mm 2000mm 2300mm 2500mm
knife configuration 4 5,6 5,6 6,7 6,7 6,7
Scorer configuration 6 8,10 8,10 10,12 10,12 10,12
Order change time Common type 3-8s 3-8s 3-8s 3-8s 3-8s 3-8s
AC servo type 1-5s 1-5s 1-5s 1-5s 1-5s 1-5s
Min. Slitter-spacing 160mm 160mm 160mm 160mm 160mm 160mm
Min. Score-spacing 0 0mm 0mm 0mm 0mm 0mm
Slitter/Scorer precision ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm
Machine body rectification range 200mm 200mm 200mm 200mm 200mm 200mm
Dimensions L x W x H (mm) 2880*1900* 2360 3080*1900* 2360 3280*1900* 2360 3480*1900* 2360 3780*1900* 2360 3980*1900* 2360



Mechanical parts



Taiwan HIWIN linear guide way.

Order changing used HIWIN precision ball screw.

Bearings:Germany FAG,China HRB famous brand.

Synchronous belt:Japan SUBAK.

Adopt raw material tungsten alloy thin blade
