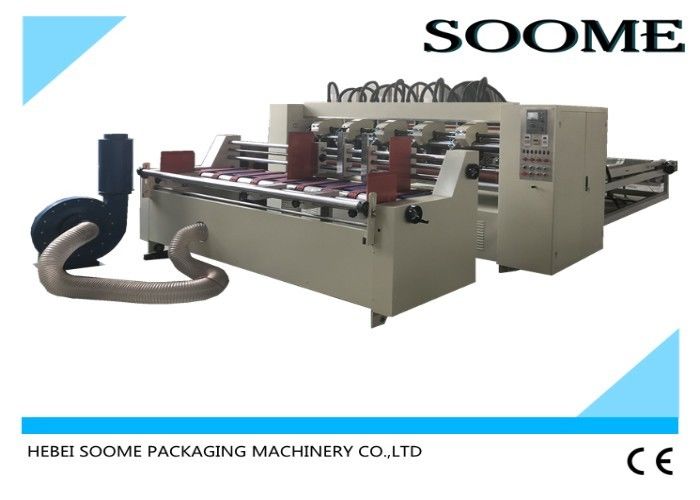

Automatic Feeding Paper Thin Blade Slitter Scorer For Corrugated Sheet 2500 mm 440 V

Place of Origin Made in China
Brand Name SOOME
Certification CE
Model Number SMBD-ZDDD
Minimum Order Quantity 1 Set
Price Contact
Packaging Details Wooden case or plastic film 1*20'' Container
Delivery Time 35 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 Set/ month
Product Details
Max Paper Size 2000mm,2200mm,2500mm,2800mm,3000mm Blade PCS. 4,5,7
Warranty 12 Months Voltage As Your Need
Machine Color As Your Need Port Tianjin,Xingang
High Light

corrugated slitter machine


slitter scorer machine

Leave a Message
Product Description

Automatic feeder paper thin blade slitter scorer add stacker for corrugated sheet 2500mm


  Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .

  Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.

  We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Iran,Turkey,Spain and so on.

  Wish we unite in a concerted effort for the beautiful future!


Product overview:


The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades working width, automatic locking, improved the working efficiency.


Two types of this slitter for baffles:

1) Independent suction auto feeder part (suitable to big wide paper).

2) Combined auto feeder with main machine together (suitable to small and narrow paper)




1. Adjust the baffle size by lead screw, easy to operate.


2. Can set processing paper qty, automatic stop the feeding after finishing.


3. Automatic adsorption feeding, improve the operation security, reduce the labor intensity.


4. Suitable to the long paper slitting creasing.


5. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.


6. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.


7. Adopt two rubber rollers in front and back of blades, make sure the paper will not run inclined.


8. Can choose automatic or manual sharpening of blade.


9. Stacker : electrical adjustment of the back guard size as per paper height; Automatic lifting up and down as per settled paper piling height.


10. Use high quality paper pressing strip, make sure to pile up tidy.


Technical parameters:




Effective width

1800mm 2000mm 2300mm 2800mm

Min. Slitting length

270mm 270mm 270mm 270mm

Min. Slitting width

130mm 130mm 130mm 130mm

Min. Indentation width

30mm 30mm 30mm 30mm

Machine size

2640*1750*1400 2840*1750*1400 3140*1750*1400 3640*1750*1400


7.5kw 7.5kw 10.5kw 13.5kw

Max. Piling height

300mm 300mm 300mm 300mm


Main parts:


Item Brand Origin
Synchronous belt SUBAKE Japan
Thin blade

Tungsten alloy, raw material

Guangdong, China

Bearing HRB China
