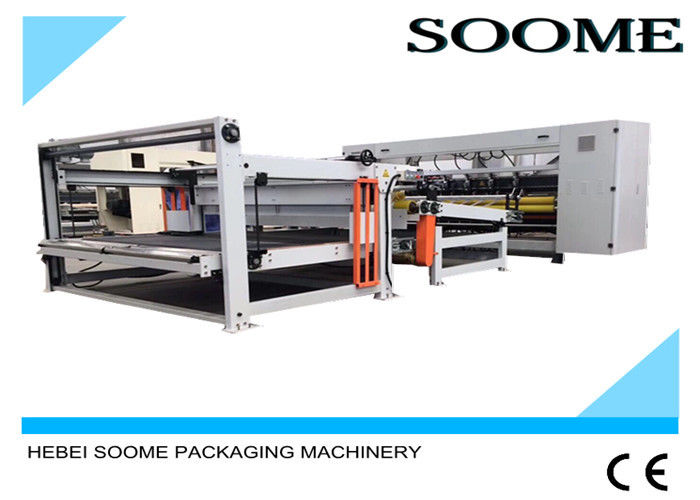

High Efficiency Corrugated Slitter Machine With Stacker Paper Collection




Increasing the QTY of shafts of the thin blade slitter scorer adopted two shafts in front and back of the slitter can minimize the length of cardboard which is suitable to the common paper and the small baffle paper. Electric control working width of the blades and automatic self locking improve the working efficiency.


Main feature


1. Application: for slitting,creasing,conveying,counting as well as stacking multiple size corrugated paper.

2. Performance description: the machine achieves paper feeding,slitting as well as creasing of corrugated cardboard which improves the work efficiency for the users in the production of loose sheets. Its advantages are automatic feeding, quick change of sheets, accurate positioning, high efficiency, simple operation, safety and reliability.

3. Highlights of the machine: Servo-controlled leading edge feeding mechanism to complete automatic paper feeding.Automatic completion of the change of sheets, roller clearance linear automatic adjustment.


Automatic paper feeding unit


1. Feeding paper adopts servo control, which can automatically adjust the number of rotating turns of feeding wheel according to the length of cardboard,so as to realize stable feeding of cardboard with different lengths.

2. Adopting the adjustable downdraft table and selecting the light pressure wheel mechanism, the high density pulley reduces the friction to the paperboard, thus making the paper feeding more smoothly and stably.

3. Side baffle position, back baffle position according to the width and length of cardboard automatically adjust positioning, and has manual fine-tuning function.


Computerized slitter creasing unit


1. The gap between the cots and the height of the tool rest is regulated synchronously to ensure the strength of the cardboard.

2. The position of the cutter wheel is automatically reset to zero, and the thin knife adopts ultra-thin tungsten alloy steel with long service life.

3. The layout method is patented design, replacement order time is 15-25 seconds, precise positioning.

4. Adopt pneumatic / automatic lifting tool design, with flexible arrangement and simple operation.

5. Select high quality steel, guide rail beam box welded structure, improve the strength and stability of the whole machine.


Computerized automatic counting stacking unit


1. The use of two stages of belt conveyor frequency conversion control, according to the paper feeding speed automatic adjustment.

2. The end of the outlet of the paper wheel is pressed out of the paper to prevent cardboard deviation.

3. Automatic control of hanging basket height, laser detection of stacking height, while controlling the drop between hanging basket and paper outlet to ensure the best stacking effect.


Technical parameters


Item Specification
Type SMBD-NC-3100
Blade and scorer 5 blades 8 scorers
Max. Slitting width 3100mm
Min. Slitting width 135mm
Min. Creasing width 105mm
Min. Paper feeding length 360mm
Max.collecting length 2000mm
Working speed 160-200m/min
Upper working table Computer industrial integrated machine, touchable operation
Down working table Schneider PLC
Leading edge feed drive TECO / Schneider servo motor 3kw
Leading edge feed fan Chinese brand 5.5kw
Changing order motor TECO / Schneider servo motor 0.75kw
Cutter driving motor Shandong power long inverter motor 5.5 kw-6
Flat belt paper driving motor Taiwan Yong Kun gear reducer 1.5kw
Basket lifting Gear reducer 2.2kw-40S
Suspension tray longitudinal paper discharge motor Precision bevel gear reducer 1.5kw
Main drive inverter Schneider series
Low voltage electrical appliances Schneider low voltage apparatus
The main motor drive mode Adopt imported synchronous belt drive device, which has stable transmission, high precision, long life and low running noise
The overall size of the whole machine 8800×4800×2100mm
Total motor power 26kw
