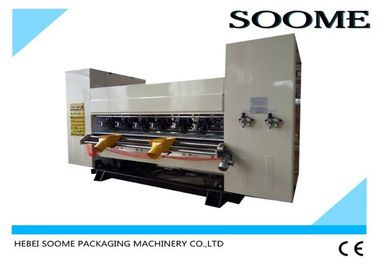

NC Type Thin Blade Slitter Scorer Machine For Cutting Creasing Cardboard

Place of Origin HEBEI CHINA
Brand Name SOOME
Certification CE
Model Number SMBD-ANC
Minimum Order Quantity 1 Set
Price Contact
Packaging Details Wooden case or plastic film 1*20'' container by shipping
Delivery Time 35 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 15 Set /month
Product Details
Uasge Cutting And Creasing Cardboard Paper Size 1700,1900,2100,2400mm
Min Scorer Spacing 0mm Speed 150-180m/min
Airport Beijing,Zhengding,Tianjin,Jinan Port All China Port
High Light

corrugated slitter machine

,

slitter scorer machine

Leave a Message
Product Description

NC Type Thin Blade Slitter Scorer Machine For Cutting Creasing Cardboard



Functions and Features :

  • Individual step motor and controller on each slitter and scorer sets,quick and accurate order change.
  • Slitters and scorers are inverter controlled,speed synchronizes with board speed.
  • Two rows of scorers,realizes minimum scorer spacing is 0mm.
  • There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female.Electric score-depth adjust.
  • Alloyed steel thin-blades,sharp and long life of over 800 million meters ,auto sharpening.
  • Standard motorized body left-right rectification controlling system.
  • Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life.
  • Standard communication interface,easy to link with management system.
  • You can add color code tracker or absorption of waste.
  • A memory of 999 orders.Non-stop changeover or manual change over can be realized.



High precision high efficiency energy saving

  • Alloyed tungsten steel thin blades,auto sharpening and long life of over 8 million meters.
  • Front row with smooth roller as lower scorer,realizes minimum scorer spacing is 0mm.
  • Front row with smooth roller as lower scorer,realizes high quality male to flat pre score for full printed board,back row:male to female.
  • Trim suction inlet and color code tracking system are optional.
  • Individual sealed electrical cabinet ,high quality electric element .
  • High quality beeline rail and high precision screw conveying guarantees a ±0.5mm precision.

 Technical parameters :



Type SMBD-JZ-1800 SMBD-JZ-2000 SMBD-JZ-2200 SMBD-JZ-2500
Effective width 1700mm 1900mm 2100mm 2400mm
Knife configuration 5,6 5,6 6,7 6,7
Scorer configuration 8,10 8,10 10,12 10,12
Order change time Common type 3-8s 3-8s 3-8s 3-8s
AC servo type 1-5s 1-5s 1-5s 1-5s
Min.Slitter-spacing 160mm 160mm 160mm 160mm
Min.Scorer-spacing 0mm 0mm 0mm 0mm
Slitter/Scorer precision ±0.5mm ±0.5mm ±0.5mm ±0.5mm
Body rectification range 200mm 200mm 200mm 200mm
Dimensions L*W*H(mm) 3080*1900*2360 3280*1900*2360 3480*1900*2360 3780*1900*2360
Weigh 4.2t 4.5t 4.7t 4.9t



Whichever phase you are in,we are always around you Ever-lasting service system.



Pre-sales service



1. We can provide customers with a variety of production processes programs free of charge,including technical advice,equipment selection,customization according to special requirements of customers and make appropriate adjustments.



Installation and debugging



2. While delivering equipment to the customer on time,we will send technical service engineers for on site installation.Under the conditions that the customer’s sites are available for the installation and debugging of spare parts,our technical service engineers will complete the installation and debugging of the equipment orderly within a short time for customer use.



Technical training



3. We provide free technical training.After the installation and debugging is completed at the user’s site,we will conduct the training for user’s operation with 1-2 maintenance personnel respectively.The training includes the machine principle,equipment structure,process description,equipment maintenance,safety protection,operational procedures,simple troubleshooting etc.



Equipment maintenance



4. We provide users with comprehensive after-sales services.

Commitment:1 year warranty since the date of equipment installation and debugging are qualified.If equipment has operation failure,the company promises to provide users with solutions within 24 hours.After the warranty expiration,the company provides the lifetime maintenance services.

3. We provide free technical training.After the installation and debugging is completed at the user’s site,we will conduct the training for user’s operation with 1-2 maintenance personnel respectively.The training includes the machine principle,equipment structure,process description,equipment maintenance,safety protection,operational procedures,simple troubleshooting etc.
