Computerized Thin Blade Slitter Scorer Machine Corrugated Cardboard 4 - 7 Blades
| Place of Origin | Cangzhou, China |
|---|---|
| Brand Name | SOOME |
| Certification | CE |
| Model Number | SMBD-BNC-2200 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Wrapped with film or in wooden case |
| Delivery Time | 35days after deposit |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 20sets per month |
Product Details
| Work Width | 1600-2500mm | Blade Qty | 4-7blades |
|---|---|---|---|
| Scorer Qty | 6-12scorers | Scorer Shape | 3types |
| Scorers Rows | 2rows Of Scorers | Blade Material | Tungsten Cardbide Alloy |
| Size Adjustment | Computerized Automatically | Electrics Brand | Inovance / Schneider / Delta / Omron |
| Belt Brand | SUBAK | Certificate | CE |
| High Light | corrugated slitter machine,slitter scorer machine |
||
Product Description

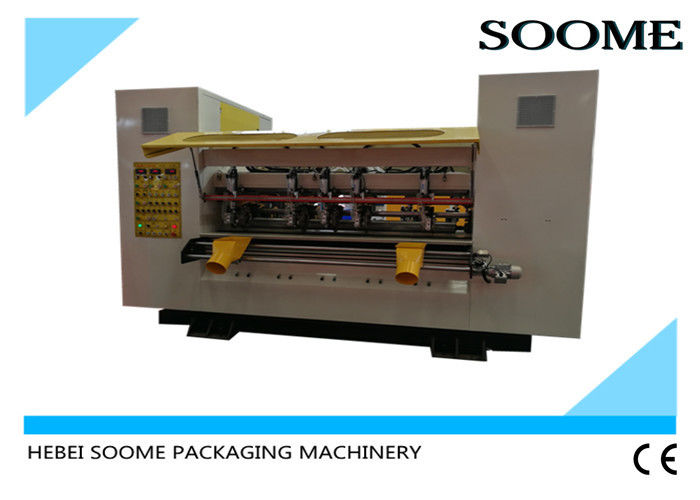

Computerized Thin Blade Slitter Scorer Machine Corrugated Cardboard 4 - 7 Blades
Function and features:
Suitable to the corrugated cardboard slitting and scoring in the production line. Fully automatic controlled by computer, non-stop order changing, improve the production efficiency.
1. High quality industry computer and high performance PLC make up the CNC system.
2. Adopt high precision linear guide way, grinding ball screw driving, can assure the slitting and creasing precision within ±0.5mm.
3. Has the memory of 999 orders, realize non-stop automatic or manual order changing, time within 3~8s. When two sets slitters using together, can change order faster.
4. Design speed 200m/min. Can track the line speed automatically and keep the same speed with line. Easy to connect with management system.
5. Alloyed tungsten steel thin-blades,sharp and long life of over 8 million meters ,auto sharpening.
6. The knife sharpening is controlled by computer, automatic or manual sharpening, edge trimming knife, easy to maintain.
7. There are three types of scorers: convex to concave (3layers cardboard), convex to concave (5layers cardboard), convex to flat, the 3types can change electrically fast.
8. Two rows of scorers in front and back,realizes minimum scorer spacing is 0mm.
9. The indentation depth can be adjusted electrically, beautiful and easy to bend.
10. The whole machine is motorized moving left-right .
11. More ball screw type, higher precision and faster.
12. Option: Two electrically adjusted waste suction mouth.
Technological parameter:
| TYPE | SMBD-BNC-1600 | SMBD-BNC-1800 | SMBD-BNC-2000 | SMBD-BNC-2200 | SMBD-BNC-2500 | |
| Effective width | 1600 | 1800mm | 2000mm | 2200mm | 2500mm | |
| knife configuration | 4 | 5,6 | 5,6 | 6,7 | 6,7 | |
| Scorer configuration | 6 | 8,10 | 8,10 | 10,12 | 10,12 | |
| Order change time | Common type | 3-8s | 3-8s | 3-8s | 3-8s | 3-8s |
| AC servo type | 1-5s | 1-5s | 1-5s | 1-5s | 1-5s | |
| Min. Slitter-spacing | 160mm | 160mm | 160mm | 160mm | 160mm | |
| Min. Score-spacing | 0 | 0mm | 0mm | 0mm | 0mm | |
| Slitter/Scorer precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | |
| Machine body rectification range | 200mm | 200mm | 200mm | 200mm | 200mm | |
| Dimensions L x W x H (mm) | 2880*1900* 2360 | 3080*1900* 2360 | 3280*1900* 2360 | 3480*1900* 2360 | 3780*1900* 2360 | |
Machine details
Slitter and scorer independent servo control ,realize fast change.
Change order within 1-5 seconds.precise(±0.5mm)
Two rows of scorers,realizes minimum scorer spacing is 0mm.Three type of scorers,convex to concave (three lines),convex to concave(five lines),convex to flat.
Precised gapless synchronous transmission belt, precious encoder monitoring.
Famous brand in the world electric elements.
Mechanical parts
1. Taiwan HIWIN linear guide way.
2. Order changing used HIWIN or Jining Botte precise ball screw.
3. Bearings:Germany FAG,China HRB famous brand.
4. Synchronous belt:Japan SUBAK.
5. Adopt raw material tungsten alloy thin blade
Control system
PLC: Inovance
Servo drivers: Inovance
Touch screen: Inovance
Servo motor: Inovance servo motor
Frequency converter: Inovance
Low-voltage apparatus: Schneider
Proximity switch: Omron
Encoder: Omron
