PLC Control Thin Blade Slitter Scorer Machine With Tungsten Steel Alloy Knife

Place of Origin HEBEI CHINA
Brand Name SOOME
Certification CE
Model Number SMBD-SJ
Minimum Order Quantity 1 Set
Price Contact
Packaging Details Wooden case or plastic film 1*20'' container by shipping from Tianjin port
Delivery Time 35 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 Set / month
Product Details
Effective Width 1700,1900,2100,2400mm Speed 130m/min
Min.slitter Spacing 120mm Min/scorer Spacing 30mm
Control Type PLC Warranty 12 Months
High Light

corrugated slitter machine


slitter scorer machine

Leave a Message
Product Description

PLC Control Thin Blade Slitter Scorer Machine With Tungsten Steel Alloy Knife


  Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .

  Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.

  We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Iran,Turkey,Spain and so on.

  Wish we unite in a concerted effort for the beautiful future!


 Function and features:


1. The work height can be electric adjusted and the orders can be changed quickly when two machines work together.

2.Standard YCT (electromagnetic adjustable speed motor) to adjust the speed (Option: dual frequency converter ).

3. Blade & scorer both move by manual (Option: blade & scorer both move by electric).

4. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr.

5. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.

6. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet.

7. Adopt China famous brand or imported electric elements, reliable performance.

8. Electric left-right rectification function to cooperate the position of paper sheet.


Technical parameters:


Model SMBD-SJ-1800 SMBD-SJ-2000 SMBD-SJ-2200 SMBD-SJ-2500
Effiective width 1700mm 1900mm 2100mm 2400mm
Speed 130m/min 130m/min 130m/min 130m/min
Min.slitting width 120mm 120mm 120mm 120mm
Min.scorer width 30mm 30mm 30mm 30mm
Machine dimension 2640*1740*1360mm 2840*1740*1360mm 3140*1740*1360mm 3640*1740*1360mm
Body rectification range 200mm 200mm 200mm 200mm
Dimensions L*W*H(mm) 3020*1250*1900 3220*1250*1900 3420*1250*1900 3720*1250*1900


Our service:

1. We can provide customers with a variety of production processes programs free of charge,including technical advice,sample cutting,equipment selection,customization according to special requirements of customers and make appropriate adjustments.

2. While delivering equipment to the customer on time,we will send technical service engineers for on site installation.Under the conditions that the customer’s sites are available for the installation and debugging of spare parts,our technical service engineers will complete the installation and debugging of the equipment orderly within a short time for customer use.

3. We provide free technical training.After the installation and debugging is completed at the user’s site,we will conduct the training for user’s operation with 1-2 maintenance personnel respectively.The training includes the laser principle,equipment structure,process description,equipment maintenance,laser safety protection,operational procedures,simple troubleshooting etc.

4. We provide users with comprehensive after-sales services.

Commitment:1 year warranty since the date of equipment installation and debugging are qualified.If equipment has operation failure,the company promises to provide users with solutions within 24 hours.After the warranty expiration,the company provides the lifetime maintenance services.

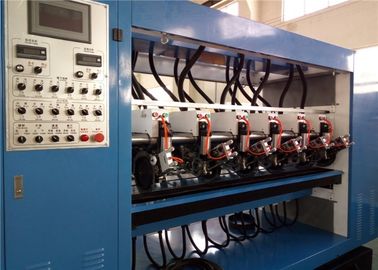

PLC Control Thin Blade Slitter Scorer Machine With Tungsten Steel Alloy Knife 0
