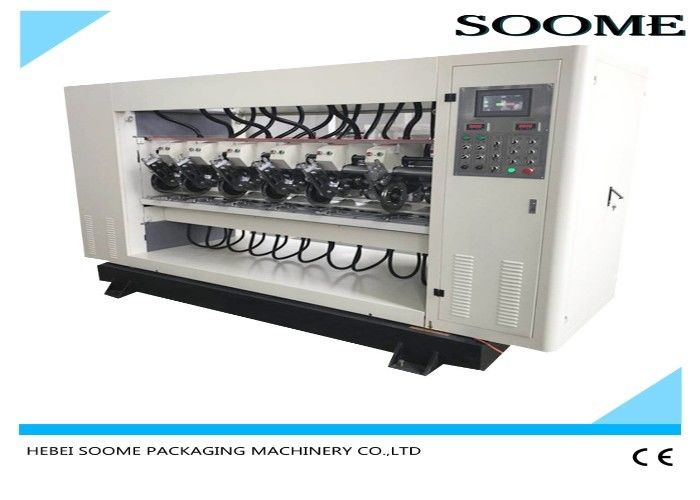

PLC Controlled Slitter Scorer Machine For Cutting Corrugated Box Up Down Lift Type

Place of Origin HEBEI SOOME
Brand Name SOOME
Certification CE
Model Number SMBD-SJ
Minimum Order Quantity 1 Set
Price Contact
Packaging Details Wooden case or plastic film 1*20'' container by shipping
Delivery Time 35 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 set / month
Product Details
Effective Width 1700,1900,2100,2400mm Speed 130m/min
Port Tianjin Min.slitter Spacing 120mm
Min.scorer Spacing 30mm Warranty 1 Year
High Light

corrugated slitter machine


cardboard slitting machine

Leave a Message
Product Description

PLC Controlled Slitter Scorer Machine For Cutting Corrugated Box Up Down Lift Type


Company instructions:


  Soome Machine, established in 1995. Specialized in developing and manufacturing the automatic, high speed, precise and good quality corrugated machines. We provide the whole dry-end solution for corrugated production line.

  Facing the fierce competition in corrugated packing field, our company adopt three concepts “mechanotronics” “ intelligent operation” and “simple usage”. We developed several new high speed automatic machines which improved the competition ability of our customers.

  We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy. Our products sold to Italy, Argentina, India, Pakistan, Germany, Egypt, Vietnam and so on.

  Wish we unite in a concerted effort for the beautiful future!


Functions and Features :

  • Individual step motor and controller on each slitter and scorer sets,quick and accurate order change.
  • Slitters and scorers are inverter controlled,speed synchronizes with board speed.
  • Two rows of scorers,realizes minimum scorer spacing is 0mm.
  • There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female.Electric score-depth adjust.
  • Alloyed steel thin-blades,sharp and long life of over 800 million meters ,auto sharpening.
  • Standard motorized body left-right rectification controlling system.
  • Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life.
  • Standard communication interface,easy to link with management system.
  • You can add color code tracker or absorption of waste.
  • A memory of 999 orders.Non-stop changeover or manual change over can be realized.

Technological parameters:


TYPE SMBD-BJ-1800 SMBD-BJ-2000 SMBD-BJ-2200 SMBD-BJ-2500
Effective width 1700mm 1900mm 2100mm 2400mm
knife configuration 5,6 5,6 6,7 6,7
Scorer configuration 8,10 8,10 10,12 10,12



Order change time


Common type

3-8s 3-8s 3-8s 3-8s
AC servo type 1-3s 1-3s 1-3s 1-3s
Min. Slitter-spacing 160mm 160mm 160mm 160mm
Min. Score-spacing 0mm 0mm 0mm 0mm
Slitter/Scorer positioning ±0.5mm ±0.5mm ±0.5mm ±0.5mm
Body rectification range 200mm 200mm 200mm 200mm
Dimensions L x W x H (mm) 3050*1900*2450 3250*1900*2450 3450*1900*2450 3750*1900*2450


1. Q: Are you factory or trading company ?

A: we are professional manufacturer factory for carton box making machinery. Our factory has professional produce many kinds of carton box Making machinery since 1995, our machines has export To many countries abroad, We have an experienced production research and development and after-sales service team.


2. Q: Why choose us?

A: our company rule is : we insist only produce High quality machine with best price, we never produce low quality machine with lowest price, because high quality machine and customers' Satisfaction is the most important foundation of our company development.


3. Q: what is your machine Warranty period?

A: We trust our machine quality well, we promised all of the Machines we produce the warranty period is 12 months.

Because we believe our machine quality, so we dare to Extended warranties!


4. Q: How about the packing of products.

A: Tighten to container with steel wire rope and Main corrugated box machines is packed with waterproof plastic


5. Q: How about the delivery time?

A: Normal standard machine we have half - finished products, if without delivery time will be within 30-60 days.


6. Q: Where is your main market?

A: Our products are exported to more than 30 countries and regions,

Our Main market is Southeast Asia, Middle East, Africa, Europe, America.


7. Q: We do not know how to operate machine,how to deal?

A). We can send our engineer to your site and do the training for your worker. you just only bear the cost for our engineer's air ticket,accommodation,food and transposition in your country

B). You can send your worker to our factory. we will teach them how to operate the machine without training charges

C). Actually there’s another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manual first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.


8. Q: If the machine has some problems,during we using ,How to deal?

A: 24 months for the whole machine. Within 24 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.Out of 24 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
