Automatic NC Computer Type Thin Blade Slitter Scorer For Corrugated Box 2500mm
Effective Width | 1700mm,1900mm,2100mm,2400mm | Kinfe Configuration | 5,6,7 |
---|---|---|---|
Scorer Configuration | 8,10,12 | Type | Common And Servo Type |
Min.slitter Spacing | 160 Mm | Min.scorer Spacing | 0 Mm |
Warranty | 12 Months | Weight | 4.2T |
High Light | corrugated slitter machine,slitter scorer machine |
Automatic NC computer type thin blade slitter scorer for corrugated box 2500mm
Mechanical parts:
- Slitter scorer order changing adpot Taiwan HIWIN liner guideway.

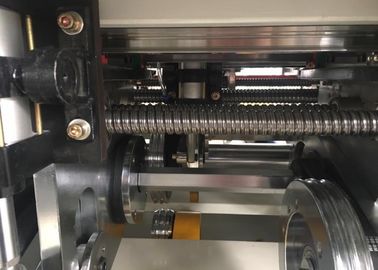

- Slitter scorer order changing drive used Taiwan HIWIN precise ball screw.
- The machine is made of precise high quality steel plate.
- Bearing: Adoptt Germany FAG and China HRB.
- Synchronous belt:High strength Japanese SUBAK.
- Adpot tungsten steel thin blade.
Control system:
- Slitter scorer order changing motor: Taiwan delta AC servo motor(servo type) or name-brand drive (common type).
- Machine motor:Taiwan TECO frequency motor.
- Touch screen:Beijing MCGS colorful touch screen.
- Test controller:Taiwan DELTA PLC.
- Position test sensor:Korea AUTONICS.
- Low voltage apparatus:France Schneider air switch,switch button,AC contactors,etc.
Technical parameters:
Type | SMBD-JZ-1800 | SMBD-JZ-2000 | SMBD-JZ-2200 | SMBD-JZ-2500 | |
Effective width | 1700mm | 1900mm | 2100mm | 2400mm | |
Knife configuration | 5,6 | 5,6 | 6,7 | 6,7 | |
Scorer configuration | 8,10 | 8,10 | 10,12 | 10,12 | |
Order change time | Common type | 3-8s | 3-8s | 3-8s | 3-8s |
AC servo type | 1-5s | 1-5s | 1-5s | 1-5s | |
Min.Slitter-spacing | 160mm | 160mm | 160mm | 160mm | |
Min.Scorer-spacing | 0mm | 0mm | 0mm | 0mm | |
Slitter/Scorer precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | |
Body rectification range | 200mm | 200mm | 200mm | 200mm | |
Dimensions L*W*H(mm) | 3080*1900*2360 | 3280*1900*2360 | 3480*1900*2360 | 3780*1900*2360 | |
Weigh | 4.2t | 4.5t | 4.7t | 4.9t |
Whichever phase you are in,we are always around you Ever-lasting service system.
Pre-sales service
1. We can provide customers with a variety of production processes programs free of charge,including technical advice,equipment selection,customization according to special requirements of customers and make appropriate adjustments.
Installation and debugging
2. While delivering equipment to the customer on time,we will send technical service engineers for on site installation.Under the conditions that the customer’s sites are available for the installation and debugging of spare parts,our technical service engineers will complete the installation and debugging of the equipment orderly within a short time for customer use.
Technical training
3. We provide free technical training.After the installation and debugging is completed at the user’s site,we will conduct the training for user’s operation with 1-2 maintenance personnel respectively.The training includes the machine principle,equipment structure,process description,equipment maintenance,safety protection,operational procedures,simple troubleshooting etc.
Equipment maintenance
4. We provide users with comprehensive after-sales services.
Commitment:1 year warranty since the date of equipment installation and debugging are qualified.If equipment has operation failure,the company promises to provide users with solutions within 24 hours.After the warranty expiration,the company provides the lifetime maintenance services.
3. We provide free technical training.After the installation and debugging is completed at the user’s site,we will conduct the training for user’s operation with 1-2 maintenance personnel respectively.The training includes the machine principle,equipment structure,process description,equipment maintenance,safety protection,operational procedures,simple troubleshooting etc.
Soome Machine,established in 1995.Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine .
Facing the fierce competition in corrugated packing field,our company adopt three concepts"mechanotronics""intelligent operation"and"simple usage".We developed several new high speed automatic machines which improved the competition ability of our customers.
We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy.Our products sold to Italy,Argentina,Russian,India,Pakistan,Germany,Egypt,Vietnam,Kazakhstan,Iran,Turkey,Spain and so on.
