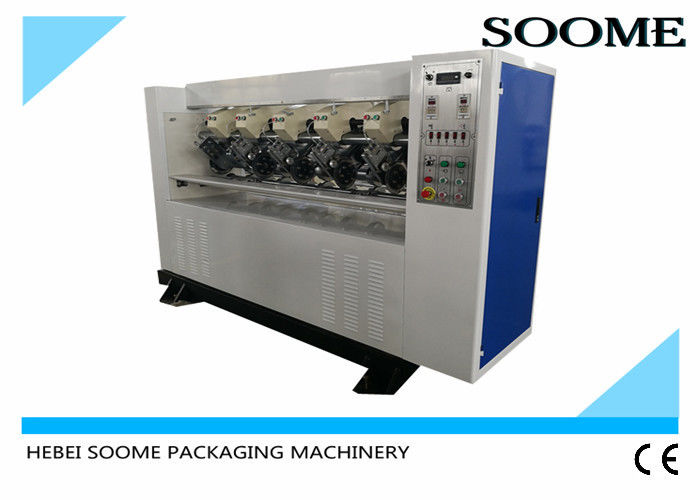

Electrical Thin Blade Slitter Scorer Machine Correction Type 80 M/Min

Electrical Thin Blade Slitter Scorer Machine Correction Type 80 M/Min

  • Electrical Thin Blade Slitter Scorer Machine Correction Type 80 M/Min
  • Electrical Thin Blade Slitter Scorer Machine Correction Type 80 M/Min
Electrical Thin Blade Slitter Scorer Machine Correction Type 80 M/Min
Product Details:
Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-DDHY-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 25-30days after deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30sets per month
Contact Now
Detailed Product Description
Application: For Corrugated Cardboard Slitting Creasing Speed: 80m/min
Work Width: 2000mm Or As Customer Need Blade Qty: 4 / 5 / 6 / 7 Blades As Customer Need
Scorer Qty: 6 / 8 / 12 Scorers As Customer Need Min. Slitter Spacing: 130mm
Total Power: 7kw Electrics Brand: CHINT / MCGS Or As Customer Need
Machine Size: 2650x940x1820mm Machine Weight: 2200KGS
High Light:

corrugated slitter machine

,

cardboard slitting machine

Electrical Thin Blade Slitter Scorer Machine Correction Type 80 M/Min



I. General introduction



Thin blade slitter scorer has two main types: one is online slitter scorer can match with corrugated production line; another is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.



And for the blades and scorers quantity, can make as customer line working width. Blades and scorers also has manual adjustment and electrical adjustment. This model has electrical blades movement.



Customer can offer the requirements, as factory, we do the suitable machine for you.



II. Function and features



Suitable to the corrugated cardboard slitting and scoring in the production line.



1. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr.

2. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.

3. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet.

4. Adopt China famous brand or imported electric elements, reliable performance.

5. Electric left-right rectification 200mm function to cooperate the position of paper sheet.

6. The space between slitting blades is electrically adjusted, automatic locking, can reach min. slitting width 130mm.

7. Double smooth shaft guide way, stable operation; inlay O-ring seal, clean and dust-proof.

8. Self-researched nut rotation technique with the automatic locking function, simple and useful.



III. Technical parameters



Type SMBD-DDHY-1800 SMBD-DDHY-2000 SMBD-DDHY-2200 SMBD-DDHY-2500
Effective width 1600mm 1800mm 2000mm 2300mm
Speed 80m/min 80m/min 80m/min 80m/min
Blade configuration 4-6 blades 4-6 blades 4-6 blades 4-8 blades
Press line wheel 6-10 lines 6-10 lines 6-10 lines 6-14 lines
Min. slitting width 130mm 130mm 130mm 130mm
Min. indentation width 30mm 30mm 30mm 30mm
Correction scope 200mm 200mm 200mm 200mm
Total power 7kw 7kw 7.5kw 7.5kw
Size of machine 2450*940*1820 2650*940*1820 2850*940*1820 3150*940*1820



IV. FAQ



1. Where is your factory located?

A: Our factory is in Dongguang county, Cangzhou city, Hebei, China.



2. Will you attend Corrugated Packaging Exhibition?

A: Yes, we attend the Sinco Corrugated Expro every year. One year in Shanghai and next year in Dongguan, Guangdong province.



3. Can customer visit SOOME factory?

A: Yes, welcome to visit our factory anytime. Can contact us before your coming.
