Energy Saving Thin Blade Slitter Scorer Machine With 3 Switched Scorer Ways

Place of Origin Made In China
Brand Name SOOME
Certification CE
Model Number SMBD-BNC
Minimum Order Quantity 1 Set
Price Negotiation
Packaging Details Wapped With Flim
Delivery Time 30 Days
Supply Ability 30 Sets/Month
Product Details
Usage For Corrugated Line Weight 5T
Precision ±0.5MM Color Customized
Fast Changing Order 3-5s Voltage 220V/380V
High Light

corrugated slitter machine


slitter scorer machine

Leave a Message
Product Description

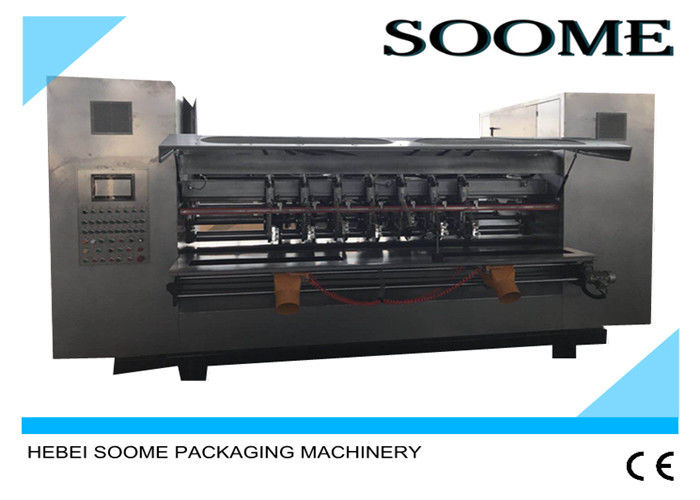

Energy Saving Thin Blade Slitter Scorer Machine With 3 Switched Scorer Ways




The full name of the thin knife machine is a thin cutter vertical cutting press, which belongs to the carton processing machine equipment, the pressing line and the longitudinal cutting process with the cardboard. Because of the alloy thin knife, the cutting paper has no edges, the line is neat and the line speed is generally faster.


Main process


1. Order management function: the edit of the order is saved, displayed, automatically updated to be processed order, and whether it is a legal order when the order is saved by the user.
2. Automatic change / list function: according to the order specification, automatically arrange the cutter and press wheel, and lift the corresponding cutter and press wheel, and automatically switch the press type. When the host computer (touch screen, live tube microcomputer) sends the wrong order, it automatically detects whether there is a knife / line, and if it does, it does not send it to the system.


Auxiliary process


1. Sharpening and lubrication function: after long term use, there will be wear and tear.
2. Rectify deviation function: according to the position of the cardboard conveyer from the above process, carry out the side correction or color correction.
3. Preloading depth adjustment function: by adjusting the position of the press roller to adjust the depth of the pressing line.
4. Waste collection function;
5. Alarm and exception handling is perfect: mainly to ensure the safety of operators and reduce the damage rate of devices themselves.
6. Factory level production line management: it is required to be able to access the factory cadre production line management system and centralized control.


Main acceptance criteria for longitudinal cutting machine


1. The cutting size of the finished cardboard is not accurate and the precision of the cutting is 0.5mm.
2. The faster the time is, the quicker the time is. The less waste generated by the corrugated board production line, the higher the production efficiency.
3. Paperboard can not be displaced in the process of paper cutting and indentation.
4. The system is stable and safe and reliable. The system is stable and reliable, which mainly reduces the generation of waste products and the improvement of production efficiency.
5. Whether the pressure line is broken and the appearance of the incision is smooth and beautiful.


Width 1600mm 1800mm 2000mm 2200mm
Speed 200m/min 200m/min 200m/min 200m/min
Min.Slitter-spacing 135mm 135mm 135mm 135mm
Min.Score-spacing 0mm 0mm 0mm 0mm
Body-rectification range 200mm 200mm 200mm 200mm
Total power 16.25kw 16.25kw 20.25kw 20.25kw
Dimensions L*W*H 3480*1650*2340 3680*1650*2340 3880*1650*2340 4080*1650*2340
