| Place of Origin: | China Hebei Dongguang |
| Brand Name: | SOOME |
| Certification: | CE |
| Model Number: | SMBD-HY |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden or plastic * 20”container or LCL |
| Delivery Time: | 35 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 25 set/month |
| Electric Part: | CHINT Or Import From Europe | Dimensions: | Machine Model |
|---|---|---|---|
| Speed: | 80m/min | Knife Thickness: | 1.2mm |
| Near Airport: | Beijing,Tianjin,Jinan,Zhengding Airport | Warranty: | 1 Year |
| High Light: | cardboard slitting machine,slitter scorer machine |
||

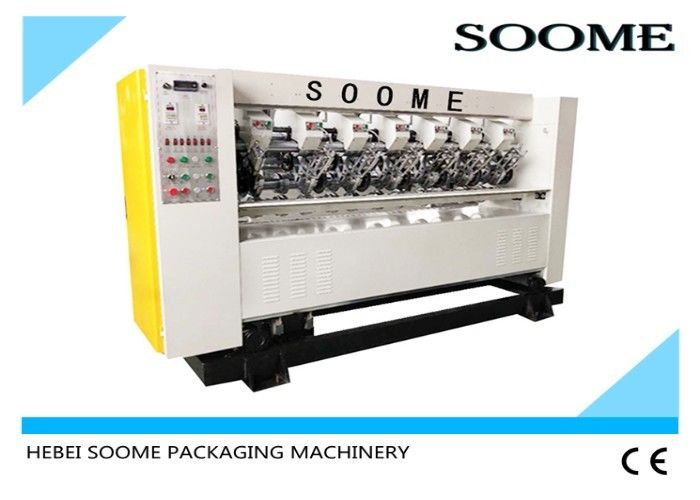

Corugated Thin Blade Slitter Scorer Machine Left Right Moving 80 m/Min
Function and features:
Suitable to the corrugated cardboard slitting and scoring in the production line.
1. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr.
2. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.
3. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet.
4. Adopt China famous brand or imported electric elements, reliable performance.
5. Electric left-right rectification 200mm function to cooperate the position of paper sheet.
6. The space between slitting blades is electrically adjusted, automatic locking, can reach min. slitting width 130mm.
7. Double smooth shaft guide way, stable operation; inlay O-ring seal, clean and dust-proof.
8. Self-researched nut rotation technique with the automatic locking function, simple and useful.
Technical parameters:
| Type | SMBD-DDHY-1800 | SMBD-DDHY-2000 | SMBD-DDHY-2200 | SMBD-DDHY-2500 |
| Effective width | 1600mm | 1800mm | 2000mm | 2300mm |
| Speed | 80m/min | 80m/min | 80m/min | 80m/min |
| Blade configuration | 4-6 blades | 4-6 blades | 4-6 blades | 4-8 blades |
| Press line wheel | 6-10 lines | 6-10 lines | 6-10 lines | 6-14 lines |
| Min. slitting width | 130mm | 130mm | 130mm | 130mm |
| Min. indentation width | 30mm | 30mm | 30mm | 30mm |
| Correction scope | 200mm | 200mm | 200mm | 200mm |
| Total power | 7kw | 7kw | 7.5kw | 7.5kw |
| Size of machine | 2450*940*1820 | 2650*940*1820 | 2850*940*1820 | 3150*940*1820 |
FAQ:
1. Is the profile customizable?
Yea, We will provide a feasible plan according to the requirements of our customers, and help customers find the right machines.
2. How many workers do this machine need to operate at least?
Need 2 workers, One do Feeding paper anther one do receive paper.If you want to save worker cost you can choose automatic feeding paper and add staking for this machine.
3.Will manufacturers continue to provide after sales service after the warranty period is over?
Yea, Of course. If you need any help you can contact seller person. If you need change quick-wear part, we can give you,but need customer payment cost.
4. Can you send engineers to go abroad to install and debug?
Yea, can but worker cost need customer payment.(E.g: Airplane ticket,Visa cost,Engineer commission and so on)
5. Are you a trading company or a manufacturer?
Our company founded in 1995, we specialize in R & D and manufacture of carton packaging machinery.
