Manual Thin Blade Slitter Scorer Machine

Manual Thin Blade Slitter Scorer Machine

  • Manual Thin Blade Slitter Scorer Machine
  • Manual Thin Blade Slitter Scorer Machine
Manual Thin Blade Slitter Scorer Machine
Product Details:
Place of Origin: China Hebei Dongguang
Brand Name: SOOME
Certification: CE
Model Number: SMBD-DD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden or plastic * 20”container or LCL
Delivery Time: 35 Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 25 set/month
Contact Now
Detailed Product Description
Adjusted Type: Electric Effective Width: 1700-2900mm
Blade QTY: 4,5,7 Scorer QTY: 6,8,12
Warranty: 1 Year Port: Tianjin Xingang Port
High Light:

corrugated slitter machine


cardboard slitting machine


Blade Electric Adjusted Offline Thin Blade Slitter Scorer Cutting Corrugated Machine 2200mm 380V


Function and Features


1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.

3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.

4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

5. Grinding part: adopt manual type grinding , it could be grinding when working, improve work efficiency. Option: blade pneumatic grinding.

6. Electric adjusted the space of slitter blade and auto pneumatic locking, easy to operate, improve the efficiency.

7. Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.


Technical parameters


TYPE SMBD-DD-1800 SMBD-DD-2000 SMBD-DD-2200 SMBD-DD-2500 SMBD-DD-2700 SMBD-DD-3000
Effective width 1600mm 1800mm 2000mm 2300mm 2500mm 2800mm
Speed 140m/min 140m/min 140m/min 140m/min 140m/min 140m/min
Total power 3kw 4kw 5kw 5kw 5kw 5kw
Min. Slitter-spacing 130mm 130mm 130kw 130kw 130kw 130mm
Min. Score-spacing 30mm 30mm 30mm 30mm 30mm 30mm
Min. Paper length 260mm 260mm 260mm 260mm 260mm 260mm
Dimensions L x W x H (mm) 2450*770*1700 2650*770*1700 2850*770*1700 3150*770*1700 3350*770*1700 3650*770*1700


Our service:


Pre-sale: product introduction, technical exchange, non-standard product design, troubleshooting.

In sale: keep good faith contract, ensure timely delivery, keep in touch at any time, to special or complex products, I plant arrange technical personnel to the user for product use and troubleshooting, debugging and maintenance guidance.

After sale: the guarantee period is 12 months out of the factory, in the course of use, regular return visit, consult the user to the product quality use condition, the improvement opinion and so on aspect feedback, in order to further improve the product quality.


Manual Thin Blade Slitter Scorer Machine 0

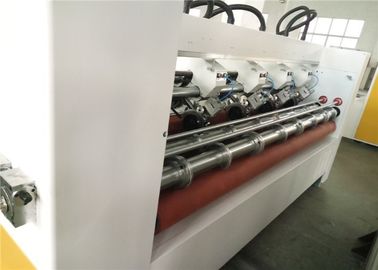

Blade part Picture
