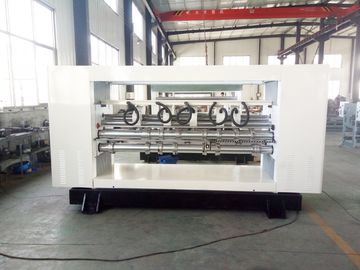

Corrugated Cardboard Thin Blade Slitter Scorer Machine Dust Proof Lifting Type

Corrugated Cardboard Thin Blade Slitter Scorer Machine Dust Proof Lifting Type

  • Corrugated Cardboard Thin Blade Slitter Scorer Machine Dust Proof Lifting Type
  • Corrugated Cardboard Thin Blade Slitter Scorer Machine Dust Proof Lifting Type
Corrugated Cardboard Thin Blade Slitter Scorer Machine Dust Proof Lifting Type
Product Details:
Place of Origin: China Hebei Dongguang
Brand Name: SOOME
Certification: CE
Model Number: SMBD-SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden or plastic * 20”container or LCL
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 set/month
Contact Now
Detailed Product Description
Min.slitter Spacing: 120mm Min.scorer Spacing: 30mm
Paper Wide: 1600-2500mm Knife Thickness: 1.2mm
Warranty: 1 Year After-sales: Engineer Available To Service Machinery
Highlight:

corrugated slitter machine

,

slitter scorer machine

Corrugated Cardboard Thin Blade Slitter Scorer Machine Dust Proof Lifting Type



Function and features:



1. Space of blades are electrically adjusted, automatic locking, fast order changing. Scorers are manually adjusted, scorers are manually adjusted.

2. Dual smooth shafts guide way assured the stable working.

3. Taiwan Delta colorful touch screen, simple operation.

4. The control system is composed of high performance Taiwan Delta PLC and dual frequency converter, energy saving, stable and reliable.

5. Keep the synchronous speed with the production line automatically.

6. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr.

7. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.

8. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet.

9. Adopt China famous brand or imported electric elements, reliable performance.

10. Electric left-right rectification function to cooperate the position of paper sheet.





Blade electric adjusted type lifting thin blade slitter scorer



1. The space between slitting blades is electrically adjusted,automatic locking,reached min.Slitting width 130mm.

2. Double smooth shaft guide way,stable operation;inlay O-ring seal,clean and dust-proof.

3. Self-researched nut rotation technique with the automatic locking function,simple and useful.



PLC controlled up-down type thin blade slitter scorer



1. Taiwan Delta colorful touch screen,simple operation.

2. The control system is composed of high performance Taiwan Delta PLC and double frequency converter,energy saving,stable and reliable.

3. Keep the synchronous speed with the production line automatically.



Technical parameters:



Type SMBD-DDPX-1800 SMBD-DDPX-2000 SMBD-DDPX-2200 SMBD-DDPX-2500
Effective width 1600mm 1800mm 2000mm 2300mm
Speed 130m/min 130m/min 130m/min 130m/min
Blade configuration 4-6 blades 4-6 blades 4-6 blades 4-8 blades
Press line wheel 6-10 lines 6-10 lines 6-10 lines 6-14 lines
Min. slitting width 120mm 120mm 120mm 120mm
Min. indentation width 30mm 30mm 30mm 30mm
Correction scope 200mm 200mm 200mm 200mm
Machine size(mm) 3020*1300*2100 3220*1300*2100 3420*1300*2100 3720*1300*2100



Pre-sale:



Product introduction, technical exchange, non-standard product design, troubleshooting.



In sale:



Keep good faith contract, ensure timely delivery, keep in touch at any time, to special or complex products, I plant arrange technical personnel to the user for product use and troubleshooting, debugging and maintenance guidance.



After sale:



The guarantee period is 12 months out of the factory. In the process of use, return visits regularly, ask the user to give feedback on the quality of the product and improve the opinion in order to further improve the quality of the product.



Corrugated Cardboard Thin Blade Slitter Scorer Machine Dust Proof Lifting Type 0
