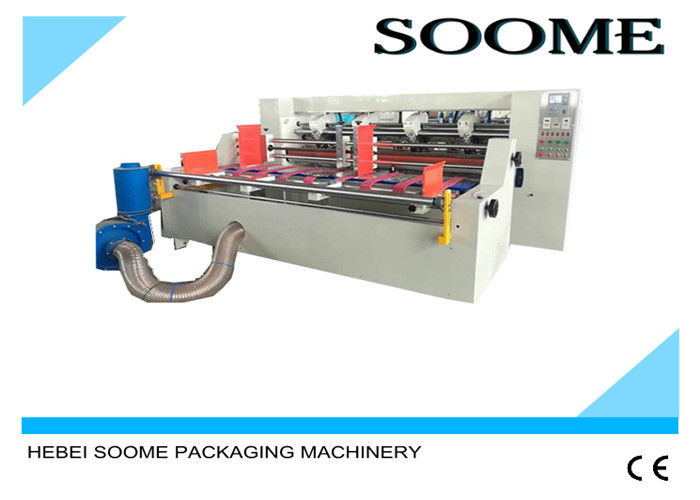

Customized Corrugated Slitter Scorer Machine With Automatic Paper Feeder
Condition | New | Color | Customized |
---|---|---|---|
Speed | Manual Control | Driven Type | Eletric |
Application | Cardboard Slitting | Bearing Brand | HRB |
Blade QTY | 3-10 | Creasing QTY | 4-18 |
Frequency Converter | Schneider Or CHINT | Warranty | 1 Year |
High Light | cardboard slitting machine,slitter scorer machine |
Customized Corrugated Slitter Scorer Machine With Automatic Paper Feeder
Summarize
As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise.Adopt electric controlled blades and creasings' movement improve the work efficiency.Particularly adding one vacuum suction paper feeder instead of the manual paper feeding one by one can not only reduce the labor cost also accelerate the production schedule.
Feature
1. The machine can set the QTY of paperboard and automaticly stop the feeding after finishing.
2. Vacuum suction paper feeding which makes sure the safety of workers and reduces the working load.
3. Suitable to a large scale paperboard machining.
4. Three types of blade adjusted methods by manual / electric /automatic for optional .
5. Slitting part: adopt high quality tungsten steel blade, sharp and long work life, slice more tidy, non-pressing and non-burr.
6. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard to 260mm for small paper.
7. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
8. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
9. Grinding part: adopt automatic and manual two kinds pneumatic grinding type for option, it could be grinding when working, improved work efficiency.
10. Option: Blades and scorers can be adjusted by electric.
Technical parameters
Model | SMBD-ZDSL-1800 | SMBD-ZDSL-2000 | SMBD-ZDSL-2500 | SMBD-ZDSL-2700 | SMBD-ZDSL-3000 |
Effective width | 1600mm | 1800mm | 2300mm | 2500mm | 2800mm |
Speed | 130m/min | 130m/min | 130m/min | 130m/min | 130m/min |
Total power | 3kw | 4kw | 5kw | 5kw | 7.5kw |
Min. Slitter width | 120mm | 120mm | 120mm | 120mm | 120mm |
Min. Score-spacing | 30mm | 30mm | 30mm | 30mm | 30mm |
Min. Paper length | 260mm | 260mm | 260mm | 260mm | 260mm |
Dimensions L x W x H (mm) | 2440*1740*1360 | 2640*1740*1360 | 3140*1740*1360 | 3340*1740*1360 | 3640*1740*1360 |
