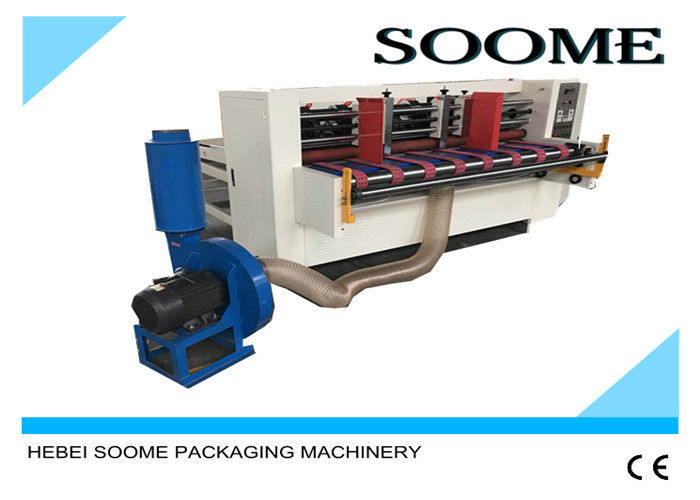

Manual Control Cardboard Creasing Machine Vacuum Suction For Long Paper Slitting
Condition | New | Color | Customized |
---|---|---|---|
Speed | Manual Control | Driven Type | Eletric |
Application | Cardboard Slitting | Bearing Brand | HRB |
Blade QTY | 3-10 | Creasing QTY | 4-18 |
High Light | corrugated slitter machine,slitter scorer machine |
Manual Control Cardboard Creasing Machine Vacuum Suction For Long Paper Slitting
Summarize
Increasing the QTY of shafts of the thin blade slitter scorer adopted two shafts in front and back of the slitter can minimize the length of cardboard which is suitable to the common paper and the small baffle paper. Electric control working width of the blades and automatic self locking improve the working efficiency.
Feature
1. Adjust the baffle size by lead screw, easy to operate.
2. Can set processing paper qty, automatic stop the feeding after finishing.
3. Automatic adsorption feeding, improve the operation security, reduce the labor intensity.
4. Suitable to the long paper slitting creasing.
5. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.
6. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
7. Adopt two rubber rollers in front and back of blades, make sure the paper will not run inclined.
8. Customers Can choose automatic or manual sharpening of blade.
9. Stacker : electrical adjustment of the back guard size as per paper height; Automatic lifting up and down as per settled paper piling height.
10. Use high quality paper pressing strip, make sure to pile up tidy.
Technical parameters
Model |
SMBD-ZDDD-2000 | SMBD-ZDDD-2200 | SMBD-ZDDD-2500 | SMBD-ZDDD-3000 |
Effective width |
1800mm | 2000mm | 2300mm | 2800mm |
Min. Slitting length |
270mm | 270mm | 270mm | 270mm |
Min. Slitting width |
130mm | 130mm | 130mm | 130mm |
Min. Indentation width |
30mm | 30mm | 30mm | 30mm |
Machine size |
2640*1750*1400 | 2840*1750*1400 | 3140*1750*1400 | 3640*1750*1400 |
Power |
7.5kw | 7.5kw | 10.5kw | 13.5kw |
Max. Piling height |
300mm | 300mm | 300mm | 300mm |
