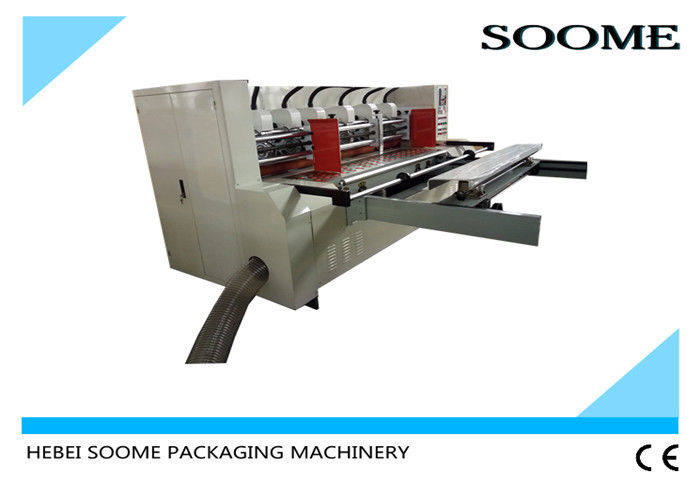

Vacuum Feeding Thin Blade Slitter Scorer Machine Automatic Creasing With Pre Creaser

Place of Origin Cangzhou, China
Brand Name SOOME
Certification CE
Model Number SMBD-ZDDD-2500
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Wrapped with film or in wooden case
Delivery Time 20-40days after deposit
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 25sets per month
Product Details
Application For Corrugated Cardboard Slitting Creasing Speed 160m/min
Work Width 2800mm Or As Customer Need Feeding Method Automatic Feeding
Suitable Sheet Thickness 1.6-17mm Min. Paper Length 260mm
Min. Slitter Spacing 130mm Electrics Brand CHINT / Delta Or As Customer Need
Machine Size 3140*1750*1400 Machine Weight 2600KGS
High Light

corrugated slitter machine


cardboard slitting machine

Leave a Message
Product Description

Vacuum Feeding Thin Blade Slitter Scorer Machine Automatic Creasing With Pre Creaser
I. General introduction
1. Thin blade slitter scorer has two main types: one kind is online slitter scorer can match with corrugated production line; another kind is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.
2. For the offline slitter scorer mainly has two types about the feeder: manual feeder and automatic feeder.
3. As for the blades and scorers quantity, can make as customer working need. Blades and scorers also has manual adjustment and electrical adjustment.
4. This thin blade slitter scorer is offline type to work separately when customer buy sheets not suitable to print and diecut can use this to slit into needed sizes and crease folding lines. Automatic feeder, electrical blades adjusted, manual scorers adjusted, with manual pre-creaser for thick board.
II. Product overview
The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades working width, automatic locking, improved the working efficiency.
III. Functions and features
1. Adjust the baffle size by lead screw, easy to operate.
2. Can set processing paper qty, automatic stop the feeding after finishing.
3. Automatic adsorption feeding, improve the operation security, reduce the labor intensity.
4. Suitable to the long paper slitting creasing.
5. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.
6. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
7. Adopt eight rolls, two roll-rang feeding, then scoring ,easy to adjust. It can do slitting only without scoring, avoid error conveying when scoring later.
8. Automatic sheets feeding with lead edge feeder or vacuum belt feeder.
9. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet. Manual adjustment of the width between scorers. Equipped with pre-creasers for thick board not easy to break.
IV. Technical parameters



Effective width


Min. Slitting length


Min. Slitting width


Min. Indentation width


Machine size
