Corrugated Board Cutting Machine Electrical Creasing Cardboard Slitting Machine

Place of Origin Cangzhou, China
Brand Name SOOME
Certification CE
Model Number SMBD-DD-2200
Minimum Order Quantity 1set
Price Negotiation
Packaging Details Wrapped with film or in wooden case
Delivery Time 15-20days after deposit
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 25sets per month
Product Details
Application For Corrugated Cardboard Slitting Creasing Speed 140m/min
Work Width 2000mm Or As Customer Need Blade Qty 4 / 5 / 6 / 7 Blades As Customer Need
Scorer Qty 6 / 8 / 12 Scorers As Customer Need Min. Paper Length 260mm
Min. Slitter Spacing 130mm Electrics Brand CHINT Or As Customer Need
Machine Size 2850x770x1700mm Machine Weight 1000KGS
High Light

corrugated slitter machine


slitter scorer machine

Leave a Message
Product Description

Corrugated Board Cutting Machine Electrical Creasing Cardboard Slitting Machine


I. General introduction


Thin blade slitter scorer has two main types: one is online slitter scorer can match with corrugated production line; another is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.


For the offline slitter scorer mainly has two types: manual feeder and automatic feeder.


And for the blades and scorers quantity, can make as customer working need. Blades and scorers also has manual adjustment and electrical adjustment.


Customer can offer the requirements, as factory, we do the suitable machine for you.


II. Function and Features


1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.


2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.


3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.


4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.


5. Grinding part: adopt manual type grinding , it could be grinding when working, improve work efficiency. Option: blade pneumatic grinding.


6. Electric adjusted the space of slitter blade and auto pneumatic locking, easy to operate, improve the efficiency.


7. Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.


III. Technical parameters


TYPE SMBD-DD-1800 SMBD-DD-2000 SMBD-DD-2200 SMBD-DD-2500 SMBD-DD-2700 SMBD-DD-3000
Effective width 1600mm 1800mm 2000mm 2300mm 2500mm 2800mm
Speed 140m/min 140m/min 140m/min 140m/min 140m/min 140m/min
Total power 3kw 4kw 5kw 5kw 5kw 5kw
Min. Slitter-spacing 130mm 130mm 130kw 130kw 130kw 130mm
Min. Score-spacing 30mm 30mm 30mm 30mm 30mm 30mm
Min. Paper length 260mm 260mm 260mm 260mm 260mm 260mm
Dimensions L x W x H (mm) 2450*770*1700 2650*770*1700 2850*770*1700 3150*770*1700 3350*770*1700 3650*770*1700


Electrical blades movement, manual creasers movement

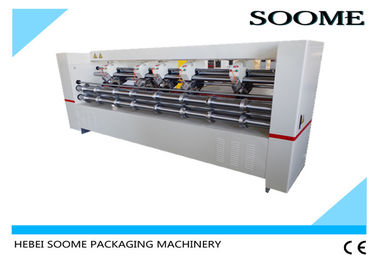

Corrugated Board Cutting Machine Electrical Creasing Cardboard Slitting Machine 0
