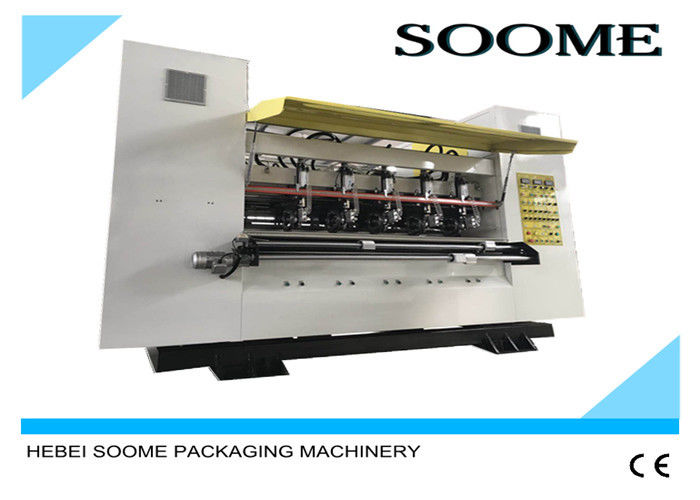

Corrugated Thin Blade Slitter Scorer Machine Fast Changing Order Within 1 To 5 Seconds

Corrugated Thin Blade Slitter Scorer Machine Fast Changing Order Within 1 To 5 Seconds

  • Corrugated Thin Blade Slitter Scorer Machine Fast Changing Order Within 1 To 5 Seconds
  • Corrugated Thin Blade Slitter Scorer Machine Fast Changing Order Within 1 To 5 Seconds
Corrugated Thin Blade Slitter Scorer Machine Fast Changing Order Within 1 To 5 Seconds
Product Details:
Place of Origin: Made In China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-BNC-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wapped With Flim
Delivery Time: 30 Days
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Condition: New Weight: 5T
Automatic Grade: Automatic Color: Yellow
Warranty: 1Year Voltage: 220V/380V
High Light:

cardboard slitting machine

,

slitter scorer machine

Type 2000MM Speed 200M / Min Computerized Thin Blade Slitter Scorer Machine

For Corrugated Line



Summarize



As an important equipment of corrugated cadres,complete the high quality line of cardboard and precise cutting and the size is very precise.Adopt computer-controlled,automatic change order,and reduce waste,improve work efficiency.



Characteristic



1. Slitter and scorer independent servo control ,realize fast change.

2. Change order within 1-5 seconds precise(±0.5mm)

3. Two rows of scorers,realizes minimum scorer spacing is 0mm.Three type of scorers,convex to concave (three lines),convex to concave(five lines),convex to flat.

4. Precised gapless synchronous transmission belt,precious encoder monitoring.

5. Trim suction-inlet.Application of two machine together can also realize fast change.



Width 1600mm 1800mm 2000mm 2200mm
Speed 200m/min 200m/min 200m/min 200m/min
Min.Slitter-spacing 135mm 135mm 135mm 135mm
Min.Score-spacing 0mm 0mm 0mm 0mm
Body-rectification range 200mm 200mm 200mm 200mm
Total power 16.25kw 16.25kw 20.25kw 20.25kw
Dimensions L*W*H 3480*1650*2340 3680*1650*2340 3880*1650*2340 4080*1650*2340







Corrugated Thin Blade Slitter Scorer Machine Fast Changing Order Within 1 To 5 Seconds 0
