Large Image :  Online Thin Blade Slitter Scorer Machine

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-GPPX-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 30-35days after deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30sets per month
Detailed Product Description
Application: For Corrugated Cardboard Slitting Creasing Speed: 150m/min
Work Width: 2000mm Or As Customer Need Blade Qty: 4 / 5 / 6 / 7 Blades As Customer Need
Scorer Qty: 6 / 8 / 10 / 12 Scorers As Customer Need Min. Slitter Spacing: 130mm
Frequency Inverter Brand: Taiwan Delta Electrics Brand: CHINT / MCGS Or As Customer Need
Machine Size: 3020x1250x1900mm Machine Weight: 3300KGS
High Light:

cardboard slitting machine


slitter scorer machine

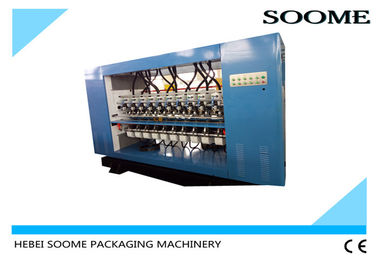

Online Lifting Type Left Right Correction Thin Blade Slitting Creasing Machine On 2000mm Corrugation Production Line


I. General introduction


Thin blade slitter scorer has two main types: one is online slitter scorer can match with corrugated production line; another is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.


And for the blades and scorers quantity, can make as customer line working width. Blades and scorers also has manual adjustment and electrical adjustment. This model has dual frequency inverter and electrical blades and creasers movement. Lifting type for match with different paper height.


Customer can offer the requirements, as factory, we do the suitable machine for you.


II. Function and features


1. Dual smooth shafts guide way assured the stable working.

2. Taiwan Delta colorful touch screen, simple operation.

3. The control system is composed of high performance Taiwan Delta PLC and dual frequency converter, energy saving, stable and reliable.

4. Encoder for following the line speed. Keep the machine synchronous speed with the production line automatically.

5. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr. Blades are pneumatic lifting up and down. Space of blades are electrically adjusted, automatic locking, fast order changing.

6. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.

7. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet. Distance between scorers are electrically adjusted.

8. Can adjust the paper passing height electrically, means this machine can be lift up and down to match with another thin blade slitter scorer machine work at the same time.

9. Electric left-right rectification function in the range of 200mm to cooperate the position of paper sheet.

10. Adopt China famous brand or imported electric elements, reliable performance.

11. Use Japanese SUBAKE synchronous belt, high precision.

12. Optional: electrical waste suction mouth.


III. Technical parameters


Effective width 1800mm 2000mm 2200mm 2500mm
Speed 130m/min 130m/min 130m/min 130m/min
Blade configuration 4-6 blades 4-6 blades 4-6 blades 4-8 blades
Press line wheel 6-10 lines 6-10 lines 6-10 lines 6-14 lines
Min. slitting width 120mm 120mm 120mm 120mm
Min. indentation width 30mm 30mm 30mm 30mm
Correction scope 200mm 200mm 200mm 200mm
Machine size(mm) 3020*1300*2100 3220*1300*2100 3420*1300*2100 3720*1300*2100


Online Thin Blade Slitter Scorer Machine 0

Online Thin Blade Slitter Scorer Machine 1
