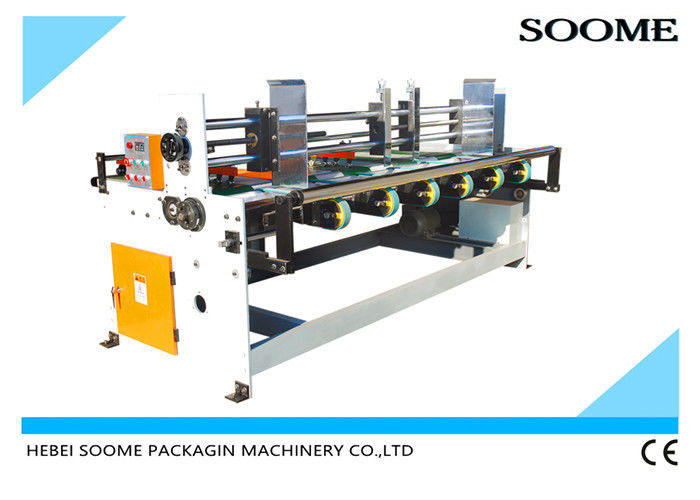

Cardboard Belt Feeding Automatic Corrugation Machine 80m/Min

Automatic Cardboard Belt Feeding Automatic Corrugation Machine



Machine configuration:



1. The sheet size can be adjusted by screw adjusting device. Only need one operator. Operation is easy and fast.
2. This cardboard feeding table is convenient and adjustable, it is suitable for many kinds of paperboard. The feeding is precise.
3. Conveying belts are made of high quality rubber, big friction, long service life, low noise, maintenance is easy, economical.
4. Dual tension control system, stable and convenient.



Transmission unit:



1. Transmission shafts are empaistic to increase the friction to ensure feeding smooth and fast.
2. Equipped with electromagnetic clutch brake device.

Cardboard feeding machine is the developed continuous feeding equipment

Guarantee the machine of chain feeding printing ( cutting or slotting ) machine to produced with continuous and high volume.Changing the people manual feeding single piece cardboard to continuous and high volume feeding cardboard,increase the working efficiency , reduce labor intensity and the rejection rate



Feeding unit:



The sheet size can be adjusted by screw adjusting device,only need one operator finish with easy and fast

Feeding table is convenient adjustable, suitable for many kinds of cardboard

Conveying belts are made of high quality rubber, big friction, long service life, low noise, maintenance is easy and economical.

Dual tension control system, stable and convenient



Electrical equipment unit:



The automatic machine electrical equipment adopts PLC program control

Electrical parts are well-known brand in Taiwan and China, to ensure the machine running

smoothly

Photoelectric signal controls the frequency motor through PLC, the governor brake operation

smoothly



Technical index:



Available width of machine	Available width of machine
Production speed	0-60 sheets/min
Max. sheet size	1500~2900mm
Min. sheet size	300mm
