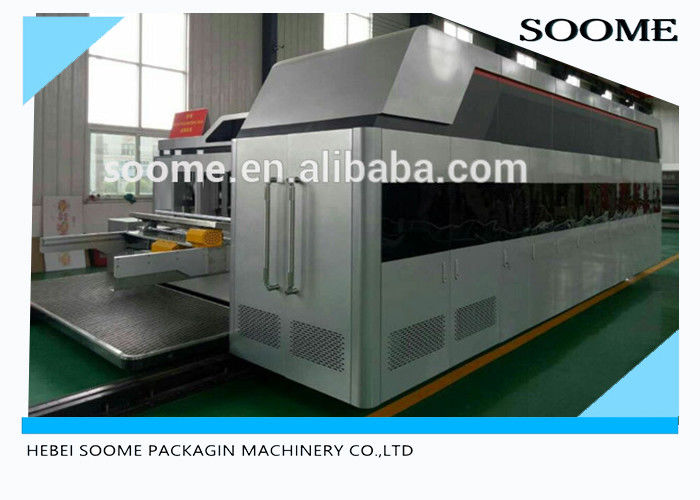

Flexo Printing And Die Cutting Machine Ceramic Anliox Roller Doctor Blade

Flexo Printing And Die Cutting Machine Ceramic Anliox Roller Doctor Blade



Specification/ Max feeding size(mm)		1800/2000*800	1800/2200*1000	2500*1200/1400/1600	2800*1200/1400/1600	3200*1600
Max speed (pcs/min)		250	200	160/150/120	150/140/120	120
Min feeding size(mm)		650*270	650*270	650*330/350/400	650*330/350/400	650*400
Skip feeding size(mm)		1800/2000*1000	1800/2200*1200	2500*1400/1600/1800	2800*1400/1600/1800	3200*1800
Cardboard Thickness		2-10	2-10	2-12	2-12	2-12
Max. printing size(mm)		1750/1950*750	1750/2150*950	2450*1180/1330/1580	2750*1180/1330/1580	3150*1580
Print plate depth (mm)		7.2
Min slot (mm)	Positive cut	120*120*120*120	120*120*120*120	140*140*140*140	140*140*140*140	140*140*140*140
	Reverse cut	200*80*200*80	200*80*200*80	240*70*240*70	240*70*240*70	240*70*240*70
Max die cutter area(mm)		1700/1900*750	1700/2100*930	2400*1150/1310/1550	2700*1150/1310/1550	3100*1550























































Feeder Unit



► Continuous or skip feeding is available with counter

► Copy lead edge feeder with strong vacuum transfer for

precise and stable feeding;

► Variable frequency drive control for vacuum blower fan for increased

or decreased vacuum suction to match different size cardboard.

► Feeding roll is made of two-layer rubber,this makes inner layer more flexible and surface more

wear-resistant,and reduce the flute damage of the cardboard;

► Dust remove system with brush and segmented vacuum sheets cleaner;

Self-locked system adopts for adjusting feeding rolls gap;

► Motorized backstop forward /backward and up/down position for easy

and quick adjustment;

► Main motor is protected from starting up when units are not fully

closed and locked.



Printer Unit



► Mounting roller with left and right both of side locking device.

► Pneumatic clutch is adopted on the anilox roll to:

(1) Make the roll run at the same speed as the main motor when the unit

is printing;

(2 ) Reduce the possibility of damage to the rubber roll and the anilox

roll for inproper operation;

(3) Allow units which are not in use to be washed up while running.

► Printing register is digitally controlled by motor and PLC

► Transverse register is also digital controlled by motor and PLC ±10mm

► Quick set and self locking pull collars.

► A fixed device of printing register and brake of electromagnetic clutch

► Cleaning function can be automatically switched to ensure the ink

recycling thoroughly

► Automatic resetting after cleaning the printer



Drying unit



► Vacuum adsorption ceramic wheels transfer,more rows ceramic wheels

dislocation array to strengthen cardboard transmission stability

► vacuum suctioned drying unit;independent servo drive(optional)

► entire process roller-type vacuum suction transport system.

► lift controlled transport table

► customers can choose three drying system according to their

configuration:hot air or infrared or ultraviolet light.

► the drying system by the import PLC program automatic

controlling,Man-machine dialog control and display

► Automatic temperature control, fault alarm protection, automatic

detection alarm, fault status display



Die Cutting Unit



► The die drum’s transverse movement can prolong the service life of

anvil cover.

► Die-cutting register is digitally controlled by motor and PLC

► The die-cut cylinder lateral register is digitally controlled by motor and

PLC,rang about±10mm

► Motorized caliper adjustment between anvil roll and die drum.

► Auto speed compensation system controlled by the independent motor

can achieve the superb die accuracy.

► Anvil trimmer to keep surface of the anvil covers flat and smooth.

► Anvil cover is Maxdura made from Taiwan
