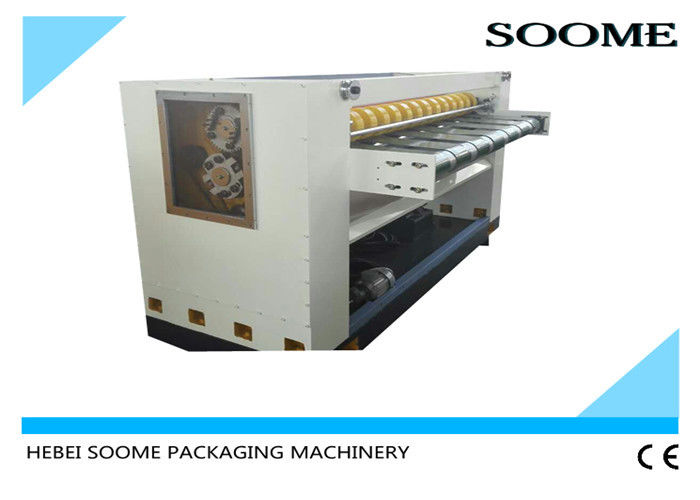

Straight Corrugated Board Cutting Machine , Servo Motor Corrugated Sheet Cutter

Straight Corrugated Board Cutting Machine  , Servo Motor Corrugated Sheet Cutter
Straight Corrugated Board Cutting Machine  , Servo Motor Corrugated Sheet Cutter Straight Corrugated Board Cutting Machine  , Servo Motor Corrugated Sheet Cutter

Large Image :  Straight Corrugated Board Cutting Machine , Servo Motor Corrugated Sheet Cutter

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: SMHQ-ZD-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 30sets per month
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Usage: Match With Production Line For Sheet Cutting Working Width: 1600 / 1800 / 2000 / 2200mm As Customer Need
Speed: 120m / Min. Knife Type: Straight Knife Or Helical Knife As Customer Need
Knife Material: Hard Steel With Tungsten Carbide On Edge Machine Color: Customized
Machine Layers: One Or Two Layers Electrics Brand: Delta / MCGS / Inovance
Voltage: 220 / 380 / 415V Warranty: One Year
High Light:

corrugated sheet cutting machine

,

sheet board cutting machine

Straight Corrugated Board Cutting Machine , Servo Motor Corrugated Sheet Cutter



I. General introduction



The cut off machine is used to cut the paperboard / sheet. Mostly match with corrugated cardboard production line. Also have stand alone machine.



Regarding the online cut off machine, it has two types: Straight knife cut off and Helical knife cut off. Straight knife cut off machine suitable to the lower speed production line while the helical knife cut off suitable to the high speed production line.



Both of them can make frequency inverter driving type and NC servo motor driving type. Frequency inverter type is more economical and energy saving. NC servo motor type has higher precision and speed.



II. Main parameters



1. Designed speed: 120m/min

2. Efficient working width: 1400-2200mm

3. Cutting length: 500-9999mm

4. Cutting precision: ±1mm (at steady speed)



III. Main functions



1. Adopt auto oil pump cyclic lubrication.

2. The precisely adjustable seamless gear ensures the blade notch to exactly mesh with each other. Good quality cut and high linearity for blade protection.

3. The computer tracks the cardboard running speed automatically to keep in the same step.

4. Can keep multi-groups orders and finish automatically according to the procedures or prior conditions.The screen can show any type of production information.



Straight Corrugated Board Cutting Machine  , Servo Motor Corrugated Sheet Cutter 0
