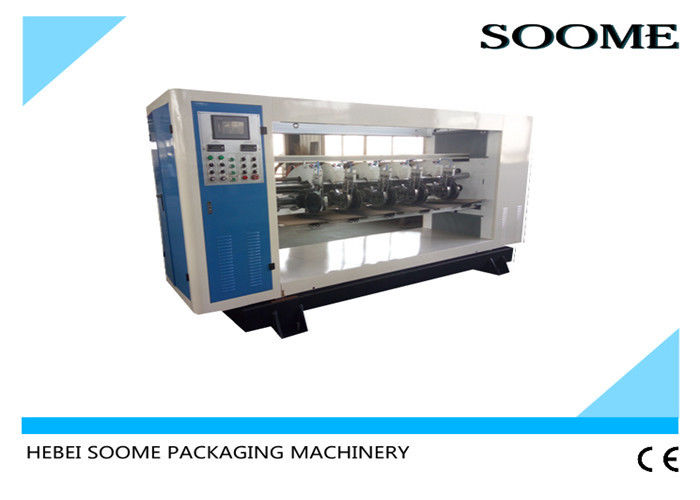

Energy Saving Thin Blade Slitter Scorer With Inverter , Creasing Cardboard Cutting Machine

Energy Saving Thin Blade Slitter Scorer With Inverter , Creasing Cardboard Cutting Machine
Energy Saving Thin Blade Slitter Scorer With Inverter , Creasing Cardboard Cutting Machine Energy Saving Thin Blade Slitter Scorer With Inverter , Creasing Cardboard Cutting Machine Energy Saving Thin Blade Slitter Scorer With Inverter , Creasing Cardboard Cutting Machine

Large Image :  Energy Saving Thin Blade Slitter Scorer With Inverter , Creasing Cardboard Cutting Machine

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-GPPX-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 30-35days after deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30sets per month
Detailed Product Description
Application: For Corrugated Cardboard Slitting Creasing Speed: 130m/min
Work Width: 1800mm Or As Customer Need Blade Qty: 4 / 5 / 6 / 7 Blades As Customer Need
Scorer Qty: 6 / 8 / 12 Scorers As Customer Need Min. Slitter Spacing: 130mm
Frequency Inverter Brand: Taiwan Delta Electrics Brand: CHINT / MCGS Or As Customer Need
Machine Size: 3020x1250x1900mm Machine Weight: 2800KGS
High Light:

corrugated slitter machine

,

slitter scorer machine

Soome Online Lifting Type Thin Blade Slitter Scorer For 1800mm Corrugated Production Line Double Frequency Inverter



I. General introduction



Thin blade slitter scorer has two main types: one is online slitter scorer can match with corrugated production line; another is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.



And for the blades and scorers quantity, can make as customer line working width. Blades and scorers also has manual adjustment and electrical adjustment. This model has dual frequency inverter and electrical blades movement. Lifting type for match with different paper height.



Customer can offer the requirements, as factory, we do the suitable machine for you.



II. Function and features



1. Taiwan Delta colorful touch screen, simple operation.

2. The control system is composed of high performance Taiwan Delta PLC and dual frequency converter, energy saving, stable and reliable.

3. Keep the synchronous speed with the production line automatically.

4. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr. Blades adjusted by electric.

5. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.

6. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet. Optional: scorers adjusted by electric.

7. Adopt China famous brand or imported electric elements, reliable performance.

8. Electric left-right rectification function to cooperate the position of paper sheet.



III. Technical parameters



Type SMBD-GPPX-1800 SMBD-GPPX-2000 SMBD-GPPX-2200 SMBD-GPPX-2500
Effective width 1800mm 2000mm 2200mm 2500mm
Speed 130m/min 130m/min 130m/min 130m/min
Blade configuration 4-6 blades 4-6 blades 4-6 blades 4-8 blades
Press line wheel 6-10 lines 6-10 lines 6-10 lines 6-14 lines
Min. slitting width 130mm 130mm 130mm 130mm
Min. indentation width 30mm 30mm 30mm 30mm
Correction scope 200mm 200mm 200mm 200mm
Machine size(mm) 3020x1250x1900 3220x1250x1900 3420x1250x1900 3720x1250x1900



IV. FAQ



1. Where is your factory located?

A: Our factory is in Dongguang county, Cangzhou city, Hebei, China.



2. Will you attend Corrugated Packaging Exhibition?

A: Yes, we attend the Sinco Corrugated Expro every year. One year in Shanghai and next year in Dongguan, Guangdong province.



3. Can customer visit SOOME factory?

A: Yes, welcome to visit our factory anytime. Can contact us before your coming.
