Auto Thin Blade Slitter Scorer Machine Feeding Corrugated Paper 2500mm Wide With Count Stacker

China HEBEI SOOME PACKAGING MACHINERY CO.,LTD certification
China HEBEI SOOME PACKAGING MACHINERY CO.,LTD certification
I'm Online Chat Now

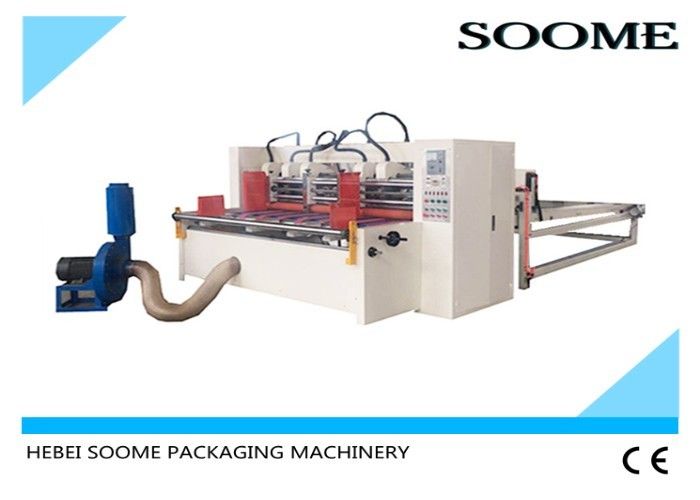

Auto Thin Blade Slitter Scorer Machine Feeding Corrugated Paper 2500mm Wide With Count Stacker

Auto Thin Blade Slitter Scorer Machine Feeding Corrugated Paper 2500mm Wide With Count Stacker
Auto Thin Blade Slitter Scorer Machine Feeding Corrugated Paper 2500mm Wide With Count Stacker Auto Thin Blade Slitter Scorer Machine Feeding Corrugated Paper 2500mm Wide With Count Stacker

Large Image :  Auto Thin Blade Slitter Scorer Machine Feeding Corrugated Paper 2500mm Wide With Count Stacker

Product Details:
Place of Origin: China Hebei Dongguang
Brand Name: SOOME
Certification: CE
Model Number: SMBD-ZDDD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden or plastic * 20”container or LCL
Delivery Time: 35 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 set/month
Detailed Product Description
Effective Width: 1800-2800mm Min.indentation Width: 30mm
Machine Size: Machine Model Power: 7.5-13.5KW
Adjusted Blade Type: Manual Or Electric Port: All China Port
High Light:

cardboard slitting machine

,

slitter scorer machine



Auto Feeder Paper Thin Blade Cardboard Slitter Scorer Machine With Count Stacker 2500mm Wide



  Soome machine,established in 1995. Specialized in developing and manufacturing the automatic,high speed,precise and good quality corrugated machines.We provide the whole dry-end solution for corrugated production line slitter scorer and touch line indentation machine.

  Facing the fierce competition in corrugated packing field,our company adopt three concepts “mechatronics”“intelligent operation”and “simple usage”.We developed several new high speed automatic machines which improved the competition ability of our customers.

 We got the recognition of thousands packing companies from domestics and overseas based on the principle of honest and trustworthy .Our products sold to Italy, Spain, Argentina, India, Pakistan, Germany, Egypt,Vietnam,Kazakhstan,Iran,Turkey ,Russian ,and so on.

  Wish we unite in a concerted effort for the beautiful future!



Product overview:



The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades working width, automatic locking, improved the working efficiency.



Two types of this slitter for baffles:



1) Independent suction auto feeder part (suitable to big wide paper).

2) Combined auto feeder with main machine together (suitable to small and narrow paper)



Features:



1. Adjust the baffle size by lead screw, easy to operate.

2. Can set processing paper qty, automatic stop the feeding after finishing.

3. Automatic adsorption feeding, improve the operation security, reduce the labor intensity.

4. Suitable to the long paper slitting creasing.

5. Electrical adjustment of the slitting blade work width, automatic locking, dual guide shafts, dual locking air cyliner, steady running, easy to adjust. Has the inlay o-ring seal, dust-proof, reduce the failure rate.

6.Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

7. Adopt two rubber rollers in front and back of blades, make sure the paper will not run inclined.

8. Can choose automatic or manual sharpening of blade.

9. Stacker : electrical adjustment of the back guard size as per paper height; Automatic lifting up and down as per settled paper piling height.

10. Use high quality paper pressing strip, make sure to pile up tidy.



Technical parameters:



Model

SMBD-ZDDD-2000 SMBD-ZDDD-2200 SMBD-ZDDD-2500 SMBD-ZDDD-3000

Effective width

1800mm 2000mm 2300mm 2800mm

Min. Slitting length

270mm 270mm 270mm 270mm

Min. Slitting width

130mm 130mm 130mm 130mm

Min. Indentation width

30mm 30mm 30mm 30mm

Machine size

2640*1750*1400 2840*1750*1400 3140*1750*1400 3640*1750*1400

Power

7.5kw 7.5kw 10.5kw 13.5kw

Max. Piling height

300mm 300mm 300mm 300mm



Our Service:



Pre-sale: product introduction, technical exchange, non-standard product design, troubleshooting.

In sale: keep good faith contract, ensure timely delivery, keep in touch at any time, to special or complex products, I plant arrange technical personnel to the user for product use and troubleshooting, debugging and maintenance guidance.

After sale: the guarantee period is 12 months out of the factory, in the course of use, regular return visit, consult the user to the product quality use condition, the improvement opinion and so on aspect feedback, in order to further improve the product quality.
