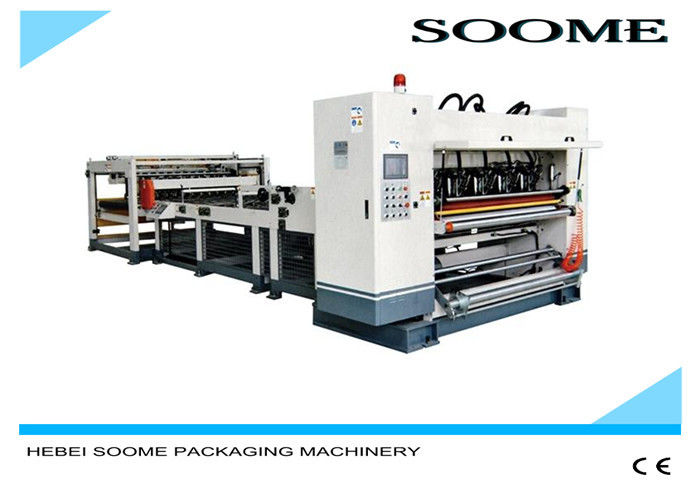

Type NC Roll To Sheet Cutting Machine Exquisite Printing Pattern 380V 50Hz

Type NC Roll To Sheet Cutting Machine Exquisite Printing Pattern 380V 50Hz
Type NC Roll To Sheet Cutting Machine Exquisite Printing Pattern 380V 50Hz Type NC Roll To Sheet Cutting Machine Exquisite Printing Pattern 380V 50Hz

Large Image :  Type NC Roll To Sheet Cutting Machine Exquisite Printing Pattern 380V 50Hz

Product Details:
Place of Origin: Made In China
Brand Name: SOOME
Certification: CE
Model Number: SMDW-NCGP-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wapped With Film
Delivery Time: 2 Months
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Type: Packaging Line Condition: New
Driven Type: Electric Power Supply: 380V 50Hz
Power: 90KW Automatic Grade: Automatic
High Light:

corrugated cardboard cutter

,

corrugated sheet cutting machine

Type NC Roll To Sheet Cutting Machine Exquisite Printing Pattern 380V 50Hz



Summarize



The slitter-cutter machine is one of the important unit of the corrugated cardboard production line. It is a mechanical equipment for cutting the finished product of cardboard. Its technical performance and equipment adjustment not only affect the overall production speed of the tile line, but also play a vital role in the size accuracy and external quality of cardboard and cartons. It is suitable for crosscutting, whiteboard, kraft paper, paper plastic composite, plastic hard sheet and other reel materials. The feature uses computer control (automatic length, number alarm, automatic stop, counting), servo motor (step motor) feed, rear discharge material, magnetic powder brake, flat knife cut off and leveling, feed pressure roller (air pressure), automatic deviation (B) (can be selected according to different materials), frequency conversion speed regulation; external function: cutting printed material Material photoelectric tracking (G), which can be selected from different materials.


Main Technical Parameters



1. Type:WJ-200-2200 single corrugated cardboard production line.

2. Max Produce width:2200mm

3. Design speed:200m/min

4. Economic speed:900-120m/min

5. Note:Production line speed test paper should meet the following requirements:(Equipment surface temperature not lower than 172 ℃ above)

Paper grade of not less than B grade

Paper moisture content of about:11%±2%

Facial tissue:100—250g/m2

Core paper:100--180g/m2

6. Flute-type combination:A ,C, B, E(Or a choice by the customer)

7. Steam about500Kg/Hr; Maximum pressure:1.2Mpa;Common pressure:0.8-1.1Mpa

8. Power supply:380V 50Hz Three-phase four-wire system

9. Equipment installed total power:about 90KW Actual electric consumption:about30KW

10. Equipment area:about 30m×11m×5m(Specific length of foundation Figure prevail)

11. Equipment out of paper orientation:according to user’factory to determine drive left or right

12. Equipment applicability,Available in A, B, C class domestic or imported paper Paper.



Type NC Roll To Sheet Cutting Machine Exquisite Printing Pattern 380V 50Hz 0
