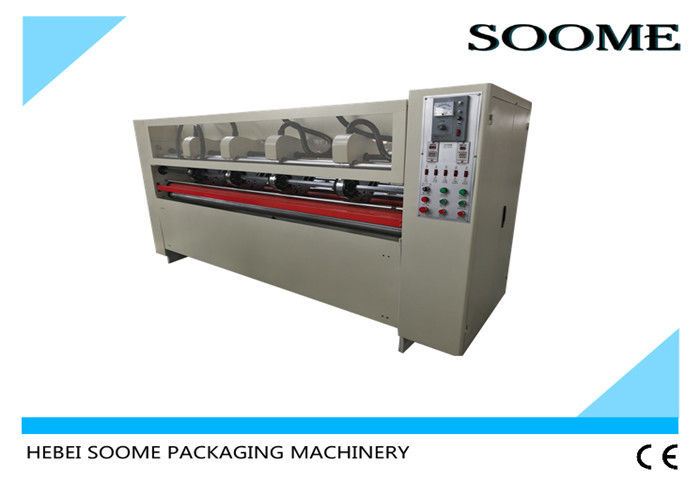

Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine

Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine
Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine

Large Image :  Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: SMBD-DD-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 15-20days after deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 25sets per month
Detailed Product Description
Application: For Corrugated Cardboard Slitting Creasing Speed: 80-120m/min Depend On Worker's Experience
Work Width: 2300mm Or As Customer Need Blade Qty: 4 / 5 / 6 / 7 Blades As Customer Need
Scorer Qty: 6 / 8 / 12 Scorers As Customer Need Min. Paper Length: 260mm
Min. Slitter Spacing: 130mm Electrics Brand: CHINT Or As Customer Need
Machine Size: 2800x1000x1600mm Machine Weight: 1850KGS
High Light:

corrugated slitter machine

,

slitter scorer machine

Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine



I. General introduction



1. Thin blade slitter scorer has two main types: one kind is online slitter scorer can match with corrugated production line; another kind is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.



2. For the offline slitter scorer mainly has two types about the feeder: manual feeder and automatic feeder.



3. For the blades and scorers quantity, can make as customer working need. Blades and scorers also has manual adjustment and electrical adjustment.



4. This slitter scorer is heavy type with manual sheets feeding, electrical blades movement and manual creasers movement. Equipped with safety cover to protect workers hand.



II. Functions and Features



1. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.



2. Adopt 10 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard.



3. 10 shafts with pre-creaser shafts, front-scoring feeding,back double rubber rollers for paper leading, running more steady.



4. Scoring part: adopt 3 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet. Increase pre-creaser to crease board in advance to avoid broad break.



5. Grinding part: adopt manual or automatic two types blades grinding by pneumatic, it could be grinding when working, improve work efficiency.



6. Electric adjusted the space of slitter blade and auto pneumatic locking, easy to operate, improve the efficiency.



7. Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.



8. Adopt HRB bearings and high strength Japanese SUBAKE belts.



9. Make all shafts, rollers and wallboard thicker.



10. All the chain wheels material is #45 steel.



11. Main motor is 7.5kw excitation motor.



III. Technical parameters



TYPE SMBD-DD-2000 SMBD-DD-2500 SMBD-DD-2700 SMBD-DD-3000 SMBD-DD-3500
Effective width 1800mm 2300mm 2500mm 2800mm 3400mm
Total power 4kw 5kw 5kw 5kw 8kw
Blade size Ø105*190*1.2mm Ø105*190*1.2mm Ø105*190*1.2mm Ø105*190*1.2mm Ø200*122*1.2mm
Max. Slitting width 1800mm 2300mm 2500mm 2800mm 3300mm
Min. Slitting width 130mm 130kw 130kw 130mm 130mm
Min. Scoring width 30mm 30mm 30mm 30mm 30mm
Min. Paper length 260mm 260mm 260mm 260mm 360mm
Max. Paper thickness 12mm 12mm 12mm 12mm 20mm
Scorer adjust height 14mm 14mm 14mm 14mm 14mm
Dimensions L x W x H (mm) 2650*800*1700 3150*800*1700 3350*800*1700 3650*800*1700 4200*1000*1700



Safety cover for protect workers



Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine 0Heavy Type Thin Blade Slitter Scorer Machine Thick Cardboard Slitting Machine 1
