Rotary Flexo Printer Slotter Die Cutter

Rotary Flexo Printer Slotter Die Cutter
Rotary Flexo Printer Slotter Die Cutter Rotary Flexo Printer Slotter Die Cutter

Large Image :  Rotary Flexo Printer Slotter Die Cutter

Product Details:

Place of Origin: Cangzhou, China
Brand Name: SOOME
Certification: CE
Model Number: YFS-E336-2500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wrapped with film
Delivery Time: 30-60days after deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10sets per month
Detailed Product Description
Printing Method: Flexo Printing Usage: For Corrugated Carton Printing Die Cutting
Printer Units: 1 / 2 / 3 / 4 / 5 Colors, As Customer Need Machine Color: As Customer Need
Machine Speed: 150-220pcs/min Cardboard Thickness: 2-11mm
Printing Plate Thickness: 7.2mm Anvil Blanket Brand: Maxdura / Depair
Machine Size: As Customer Need Voltage: As Customer Need
High Light:

flexo printing slotting machine


printing slotting die cutting machine

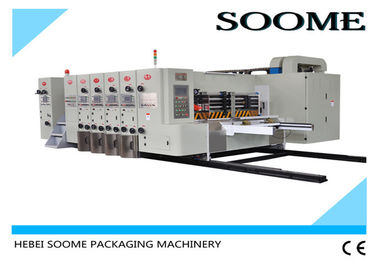

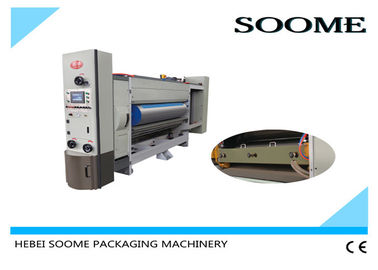

2500mm Flexo 4 Colors Printer Slotter Rotary Die Cutter Glazer Dryer, Soome Carton Box Machine


I. General introduction


This is a kind of flexo printing machine for corrugated cardborad printing slotting diecutting and stacking. These are the front procedures of colorful cartons forming.


First, this machine use waterbase ink to print different patterns and words on the sheets as per customer's requirements. Second, offer special oil to cover the sheets surface. Third, dry the sheets via UV ray to let the boards drying. Forth, slotter part cut the slot on board and crease lines for folding. Fifth, cut out different shapes or holes or hand holes on the board as per customer need. The last step of this machine is to stacking the boards together into piles for easy delivery and packing.


II. Complete performance


1. Computerized can store the common orders, fast order changing, easy to operate.

2. All the driving roller are high quality steel, hard chrome plating, surface grinding.

3. The wallboard is 60mm thick wrought iron, after deal with the internal stress then processed with CNC machining center.

4. Painting technology: the parts will be treated with the procedure derusting-phosphating-paint spraying-stoving varnish to make the painting with rust proof,hard surface, and durable.

5. The complete machine with alarm bell, will be always warning in the walking time, can keep the worker safe.

6. Each unit equipped with emergency switch inside, can stop each unit moving inside to assure the inner operator safe.

7. Spraying lubrication with dual oil pump automatic circulatory system, oil level balancer to keep the oil level balance.

8. The stored orders in the computer system can reach 999 (Main controlled computer on the slotter operation side).


All the draught fans for main motor, feeder, printer, glazer, drier units adopt frequency converter to control the air volume, adjust more exactly, make sure the feeding smoothly, can save more electricity and cost.


III. Technical parameters





Model 2500



Inner wallboard width

mm 2450


Max. Paper size



Max. Diecutting area

mm 1055X2450


Max. Paper size (skip feeding)

mm 1200X2500


Max. Printing area

mm 980×2400


Min. Paper size



(complete sheet printing)


Thickness of printing plate

mm 7.2


Design speed

sheets/min 250


Economic speed

sheets/min 150-200


Main motor power

KW 45


Total power

KW 240





Overdye precision

mm ±0.75


Slotting/diecutting precision

mm ±1.5



mm 15500X5200X3000



Rotary Flexo Printer Slotter Die Cutter 0
